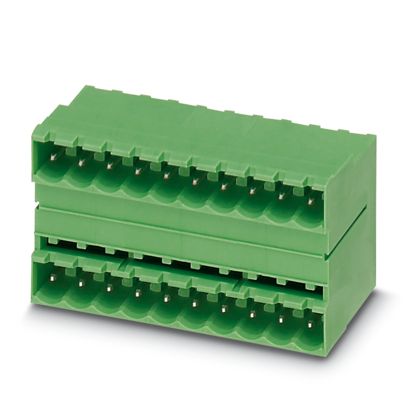

Phoenix Contact MDSTB Series Straight Wave Soldering Mount PCB Header, 26 Contact(s), 5 mm Pitch, 2 Row, Shrouded

1762800 Phoenix Contact MDSTB Series Straight Wave Soldering Mount PCB Header, 26 Contact(s), 5 mm Pitch, 2 Row, Shrouded
1762800 Phoenix Contact MDSTB Series Straight Wave Soldering Mount PCB Header, 26 Contact(s), 5 mm Pitch, 2 Row, Shrouded
Phoenix Contact

Product Information

Pitch:
5mm
Series:
MDSTB
Current:
10A
Voltage:
32 V
Row Pitch:
5mm
Mount Type:
Wave Soldering Mount
Orientation:
Straight
Product Type:
PCB Header
Contact Gender:
Male
Number of Rows:
2
Contact Plating:
Tin over Nickel
Tail Pin Length:
3.3mm
Connector System:
COMBICON MSTB 2.5
Contact Material:
Copper Alloy
Housing Material:
Polyamide
Termination Type:
Solder
Mating Pin Length:
3.3mm
Number of Contacts:
26
Shrouded/Unshrouded:
Shrouded
Standards/Approvals:
CSA, cULus Recognised, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, UL 94 V0, VDE
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
RoHs Compliant
Pre-order

Estimated Lead Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 1085.58
£ 1085.58
Mfr Part No:
1762800
Seller:
Phoenix Contact
Origin:
Warranty:
Manufacturer
Data Code:
ET13948100
Order Today!
From: United Kingdom

This is MDSTB Series Straight Wave Soldering Mount PCB Header 26 Contact(s) 5 mm Pitch 2 Row Shrouded manufactured by Phoenix Contact. The manufacturer part number is 1762800. Moreover, the product is 5mm The product mdstb, is a highly preferred choice for users. Features a 10a current in A. It carries a 32 v of voltage. The product has a straight orientation. It comes in 2 of rows. The product is made from sturdy copper alloy materials. The product also features robust polyamide housing material. The product contains 26 contacts. It has a maximum operating temperature of 100°c. Whereas, the minimum operating temperature of the product is -40°c.
