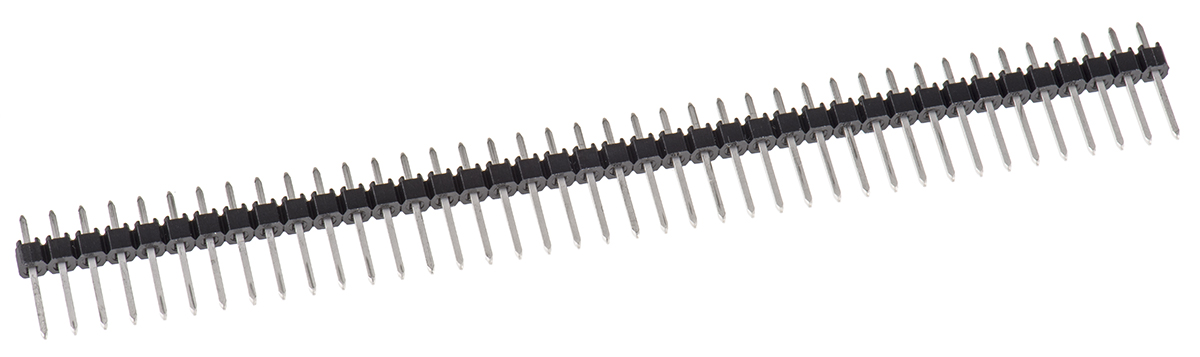

This is C-GRID III 90120 2.54mm Pitch 40 Way 1 Row Straight Pin Header Through Hole manufactured by Molex. The manufacturer part number is 90120-0160. The product has a current rating of 3.0a. The product is available in through hole configuration. The product c-grid iii, is a highly preferred choice for users. It comes in 1 of rows. Moreover, the product is 2.54mm The product contains 40 contacts. The product is made from sturdy brass materials. It has typical 11 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. It features connector header through hole 40 position 0.100" (2.54mm). The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 40. 0.114" (2.90mm) is the given possible contact length (post) values. The product has a 0.478" (12.15mm) of overall contact lentgh. 0.098" (2.50mm) of insulation height. However, 118.1µin (3.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features unshrouded. The product is widely employed in automotive, general purpose. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. In addition, black is the insulation color of the product. header, breakaway Connector type offer robust functionality. It is 0.266" (6.75mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The product c-grid iii 90120, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has nice contact finishing of tin. It has typical contact type of male pin. It has a robust polyester, glass filled insulation material. It has possible tin contact post finishing.
For more information please check the datasheets.
