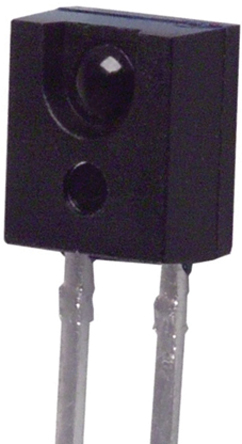

QSE113 onsemi, 25 ° IR Phototransistor, Through Hole 2-Pin Side Looker package

  • Enrgtech Part No: ET21466734
  • |
  • Manufacturer Part No:

    QSE113

  • |
  • Manufacturer: onsemi
QSE113 onsemi, 25 ° IR Phototransistor, Through Hole 2-Pin Side Looker package
QSE113
onsemi

Product Information

Dimensions:
4.44 x 2.54 x 5.08mm
Mounting Type:
Through Hole
Collector Current:
1.50mA
Typical Rise Time:
8µs
Maximum Wavelength Detected:
880nm
Height:
5.08mm
Width:
2.54mm
Length:
4.44mm
Package Type:
Side Looker
Number of Channels:
1
Maximum Dark Current:
100nA
Number of Pins:
2
Spectral Range of Sensitivity:
880 nm
Angle of Half Sensitivity:
25 °
Spectrums Detected:
Infrared
Typical Fall Time:
8µs
Current - Dark (Id) (Max):
100 nA
HTSUS:
8541.49.7080
RoHS Status:
ROHS3 Compliant
Viewing Angle:
50°
Operating Temperature:
-40°C ~ 100°C (TA)
Package / Case:
Radial, Side View
REACH Status:
REACH Unaffected
Voltage - Collector Emitter Breakdown (Max):
30 V
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
52 Weeks
Orientation:
Side View
Mounting Type:
Through Hole
Series:
-
Power - Max:
100 mW
Wavelength:
880nm
Base Product Number:
QSE113
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 25 ° IR Phototransistor Through Hole 2-Pin Side Looker package manufactured by onsemi. The manufacturer part number is QSE113. The given dimensions of the product include 4.44 x 2.54 x 5.08mm. The product is available in through hole configuration. In addition, the height is 5.08mm. Furthermore, the product is 2.54mm wide. Its accurate length is 4.44mm. It is supplied with 1 channels. It is comprised of 2 pins. It is assigned with possible HTSUS value of 8541.49.7080. The product is rohs3 compliant. Furthermore, 50° is the viewing angle of the product. The product has -40°c ~ 100°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. In addition, it is reach unaffected. The maximum collector emitter breakdown voltage of the product is 30 v. It is shipped in bulk. Its typical moisture sensitivity level is not applicable. It has a long 52 weeks standard lead time. The product has a side view orientation. The maximum power of the product is 100 mw. It has a typical wavelength of 880nm. Moreover, it corresponds to qse113, a base product number of the product. The product is designated with the ear99 code number

pdf icon
QSE113, QSE114, Plastic Silicon Infrared Phototransistor Data Sheet(Technical Reference)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
pdf icon
Logo 17/Aug/2017(PCN Design/Specification)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
