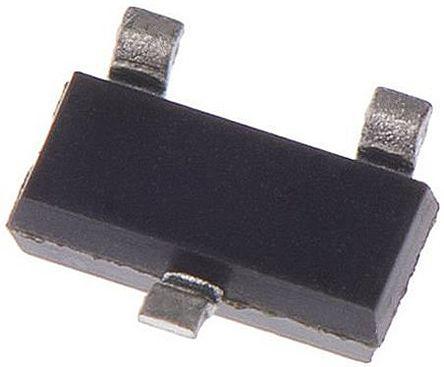

NXP BAP65-05 Dual Common Cathode PIN Diode, 100mA, 30V, 3-Pin TO-236AB

  • Enrgtech Part No: ET14154693
  • |
  • Manufacturer Part No:

    BAP65-05

  • |
  • Manufacturer: NXP
BAP65-05 NXP Dual Common Cathode PIN Diode, 100mA, 30V, 3-Pin TO-236AB
BAP65-05
NXP

Product Information

Maximum Forward Voltage:
1.1V
Maximum Diode Capacitance:
0.8pF
Dimensions:
3 x 1.4 x 1mm
Mounting Type:
Surface Mount
Application:
Attenuator, Switch
Typical Carrier Life Time:
0.17µs
Maximum Forward Current:
100mA
Maximum Series Resistance @ Maximum IF:
0.9 Ω@ 10 mA
Height:
1mm
Width:
1.4mm
Length:
3mm
Package Type:
TO-236AB
Number of Elements per Chip:
2
Minimum Operating Temperature:
-65 °C
Maximum Reverse Voltage:
30V
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Common Cathode
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Dual Common Cathode PIN Diode 100mA 30V 3-Pin TO-236AB manufactured by NXP. The manufacturer part number is BAP65-05. The given dimensions of the product include 3 x 1.4 x 1mm. The product is available in surface mount configuration. In addition, the height is 1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -65 °c. It has a maximum operating temperature of +150 °c. The diode features a common cathode configuration.

pdf icon
BAP65-05 Silicon PIN diode Data Sheet(Technical Reference)
