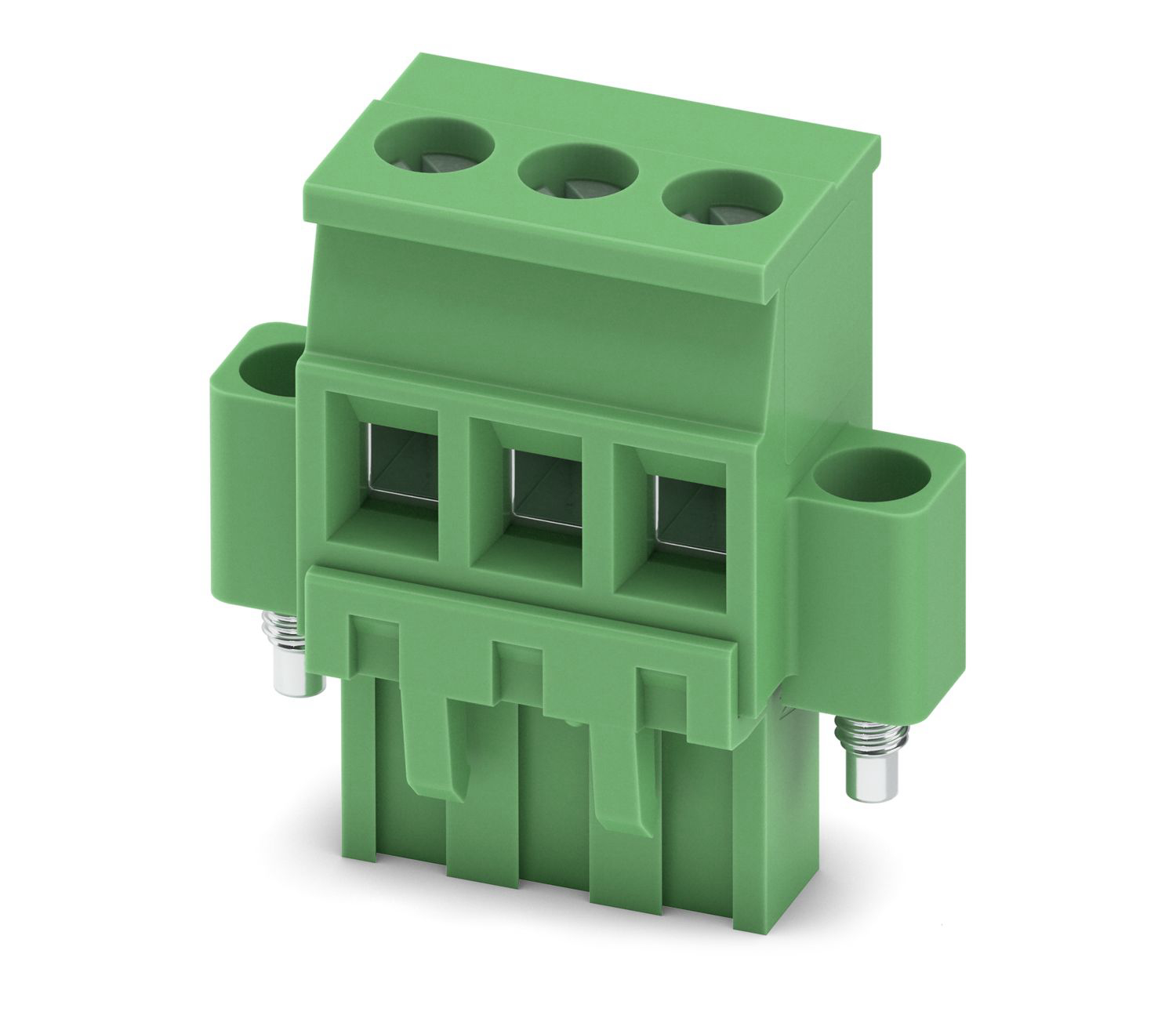

This is 5.08mm Pitch 3 Way Pluggable Terminal Block Plug Screw Mount manufactured by Phoenix Contact. The manufacturer part number is 1835106. Moreover, the product is 5.08mm The product is available in screw mount configuration. It comes in 1 of rows. The product contains 3 contacts. In addition, female is the available "Gender" of the product. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 0.2-2.5mm² of wire gauge. It also a 90° plug wire entry. 1.024" (26.01mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 8 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include mating flange, retention latches (wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon mvstbr, is a highly preferred choice for users. It has 3 positions each level. The typical current includes 15 a. Moreover, the product is 0.200" (5.08mm) The product carries 1 levels. The product is designated with the ear99 code number
For more information please check the datasheets.
