Width:
180mm
Height:
55mm
Length:
240mm
Weight:
1.9kg
Dimensions:
240 x 180 x 55mm
Battery Life:
13 h
Battery Type:
Rechargeable NiMH
Display Type:
Colour, TFT LCD
Power Source:
Battery, Mains
Interface Type:
USB

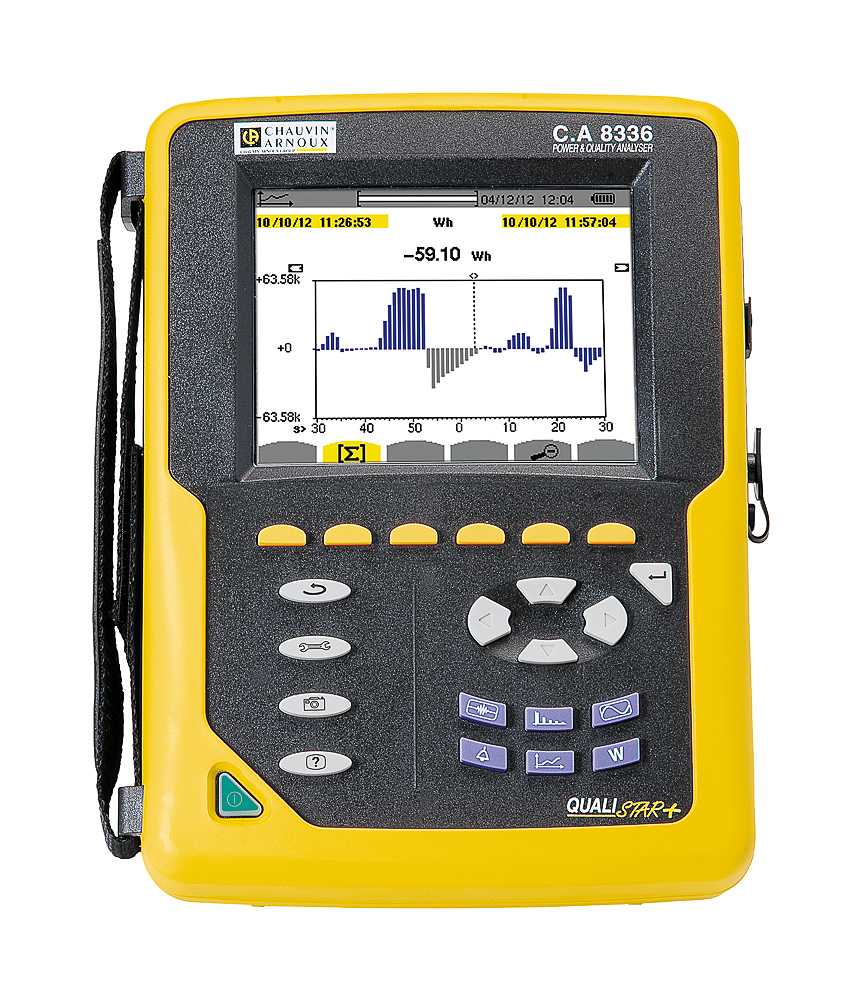

Model Number p:
CA8336
Maximum Voltage:
1000 V ac, 1200V dc
Measurement Type:
Cos, Current, DPF, Energy values, Flicker, Frequency, Harmonics, Inrush, PF, Power values, Tan, Transients, Unbalance, Voltage
Number of Phases:
1, 3
Maximum Frequency:
70Hz
Minimum Frequency:
40 Hz
Measurement Standards:
EN50160, IEC 61000-4-30
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
Best Current Measurement Accuracy:
±(0.5 % + 2 mA)
Best Voltage Measurement Accuracy:
±(0.5 % + 200 mV)
Absolute Maximum Power Measurement:
10 MW, 10 MVAR, 10 MVAmW
Absolute Maximum Current Measurement:
10000 A ac, 5000 A dcA ac
