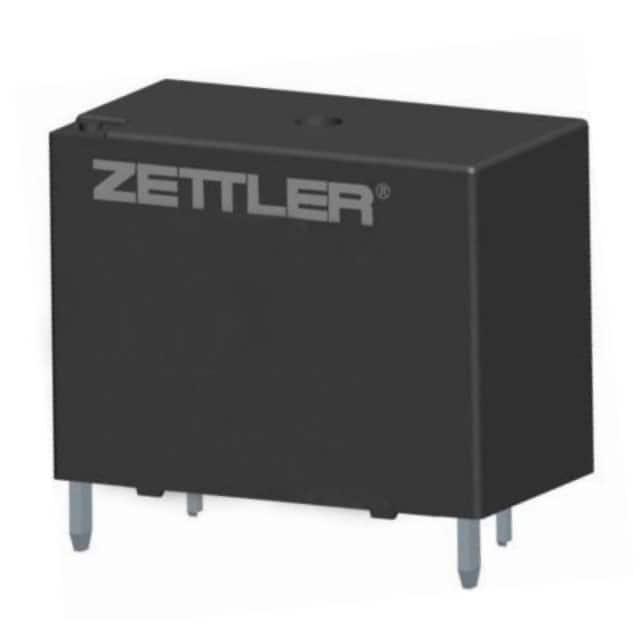

This is manufactured by American Zettler. The manufacturer part number is AZSR131-1AE-24D(200). It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. It holds up to 410 ohms coil resistance. It has a coil current of 58.5 ma. The coil is a non latching type. The product's switching voltage is 277vac - max. On the other hand, 16.8 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tray. It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. While the must release voltage is a 2.4 vdc. It has a long 15 weeks standard lead time. It has a contact current rating of 35 a. The product is available in through hole configuration. While 10 ms is its release time. The coil is a class f insulation. The product is made from sturdy silver tin oxide (agsno) materials. The product is designated with the ear99 code number
For more information please check the datasheets.
