Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil, 5 A

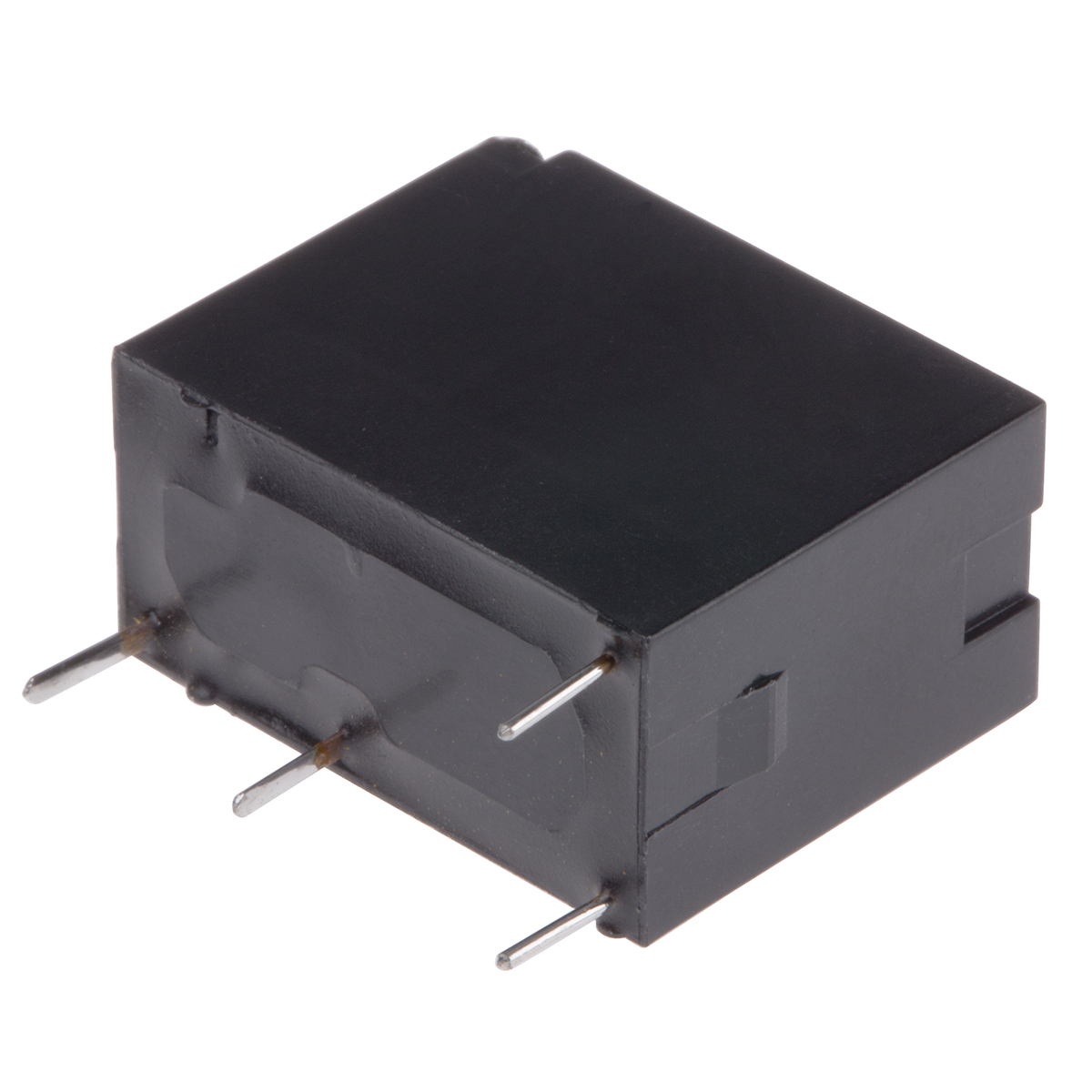

JQ1AP-24V-F Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil, 5 A
JQ1AP-24V-F
JQ1AP-24V-F Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil, 5 A
Panasonic

Product Information

Maximum Switching Voltage DC:
110V dc
Mounting Type:
PCB Mount
Coil Power:
200mW
Latching:
No
Coil Voltage:
24V dc
Length:
10mm
Height:
16mm
Switching Current:
5A
Application:
Domestic Appliances, Heating Control
Depth:
20mm
Maximum Switching Voltage AC:
250V
Maximum Switching Power DC:
150 W
Maximum Switching Power AC:
1.25 kVA
Isolation Coil To Contact:
4kVrms
Contact Configuration:
SPST
Number of Poles:
1
Terminal Type:
PCB Pin
Coil Resistance:
2880Ω
RoHs Compliant
Checking for live stock

This is SPNO Non-Latching Relay PCB Mount 24V dc Coil 5 A manufactured by Panasonic. The manufacturer part number is JQ1AP-24V-F. The product is available in pcb mount configuration. Robust coil power of 200mw. The coil voltage of the product is 24v dc. Its accurate length is 10mm. In addition, the height is 16mm. The product comes in 20mm depth. It has equipped with 1 poles. The terminal is a pcb pin type. It holds up to 2880ω coil resistance.

pdf icon
JQ Relays Data Sheet(Technical Reference)
