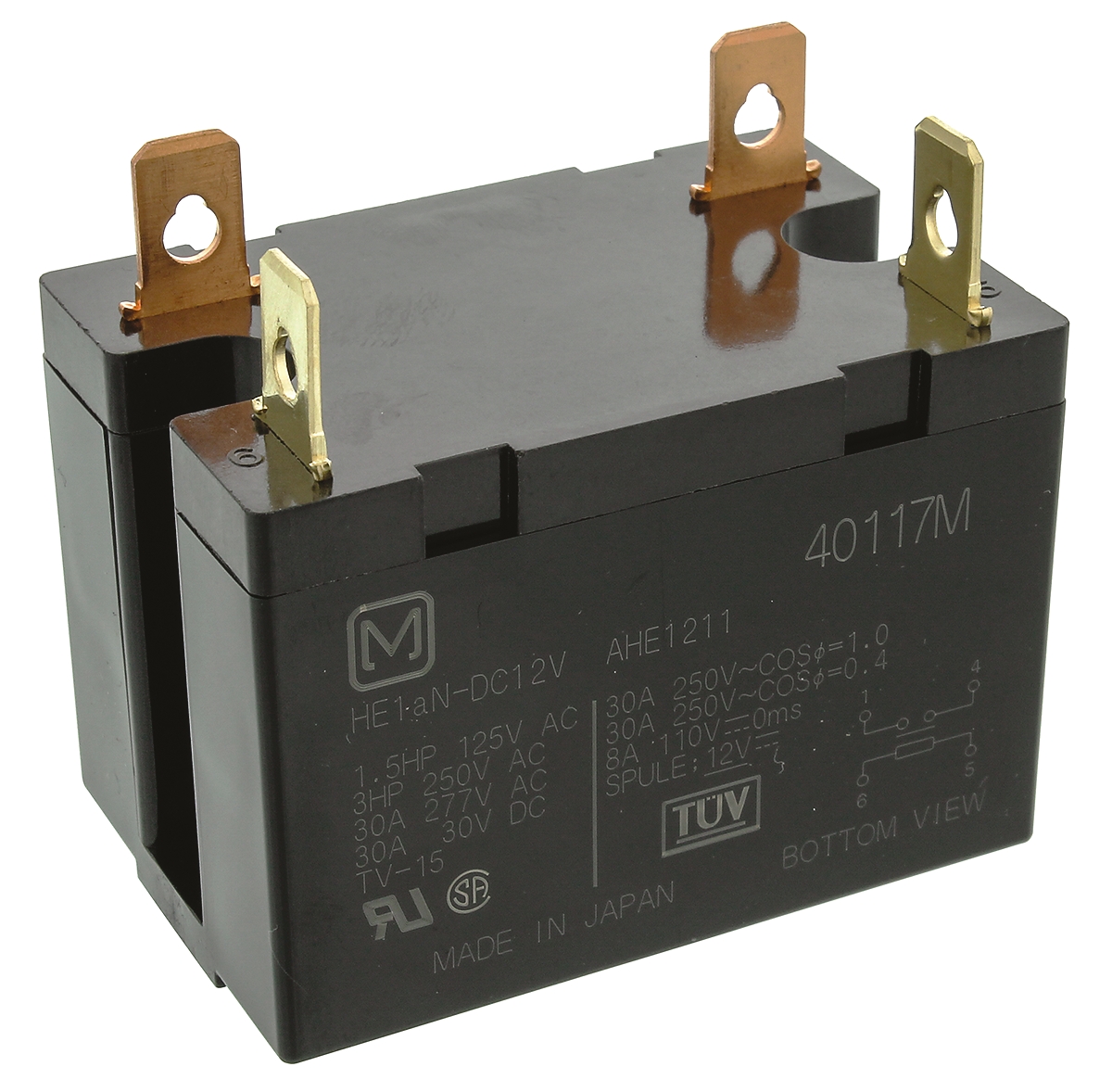

Panasonic PCB Mount Power Relay, 12V dc Coil, 30A Switching Current, SPST

Enrgtech Part No: ET22536650
|
Manufacturer Part No:
HE1AN-DC12V
|
Manufacturer: Panasonic

(0)

Product Information

Life:

100000 (Electrical) cycles, 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles

Depth:

33mm

Height:

35mm

Length:

50mm

Latching:

Coil Power:

1.92W

Application:

Power

Coil Voltage:

12V dc

Mounting Type:

PCB Mount

Terminal Type:

Through Hole

Coil Resistance:

75Ω

Number of Poles:

27 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 22.09

£ 20.17

£ 504.25

£ 18.53

£ 926.50

Mfr Part No:

HE1AN-DC12V

Seller:

Panasonic

Origin:

Warranty:

Manufacturer

Data Code:

ET22536650

Order Today!

From: United Kingdom

Est Ship Date: 11 Aug, 2026

Est Fastest Delivery: 12 Aug, 2026

Quantity Quantity

This is PCB Mount Power Relay 12V dc Coil 30A Switching Current SPST manufactured by Panasonic. The manufacturer part number is HE1AN-DC12V. The product comes in 33mm depth. In addition, the height is 35mm. Its accurate length is 50mm. Robust coil power of 1.92w. The coil voltage of the product is 12v dc. The product is available in pcb mount configuration. The terminal is a through hole type. It holds up to 75ω coil resistance. It has equipped with 1 poles. The product is made from sturdy silver alloy materials. It has a maximum operating temperature of +55°c. Whereas, the minimum operating temperature of the product is -50°c.

0900766b80e0e2ee.pdf(RS)
