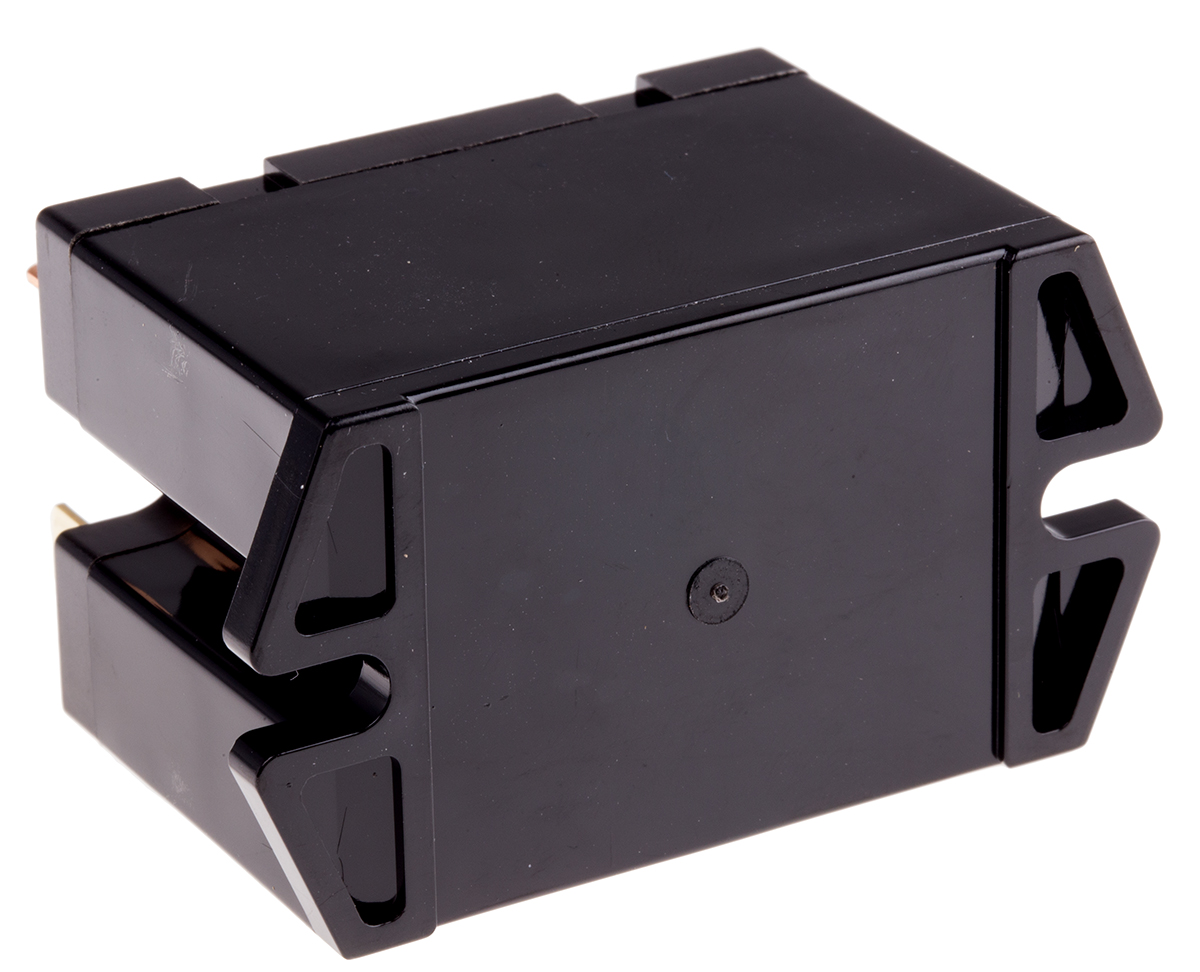

Panasonic, 12V dc Coil Non-Latching Relay DPNO, 30A Switching Current PCB Mount, HE2ANQ12

HE2AN-Q-DC12V Panasonic, 12V dc Coil Non-Latching Relay DPNO, 30A Switching Current PCB Mount, HE2ANQ12
HE2AN-Q-DC12V
HE2AN-Q-DC12V Panasonic, 12V dc Coil Non-Latching Relay DPNO, 30A Switching Current PCB Mount, HE2ANQ12
Panasonic

Product Information

Maximum Switching Voltage DC:
30V dc
Mounting Type:
PCB Mount
Coil Power:
1.92W
Latching:
No
Coil Voltage:
12V dc
Length:
60mm
Height:
35mm
Switching Current:
30A
Application:
Power
Depth:
33mm
Maximum Switching Voltage AC:
277V ac
Maximum Switching Power AC:
6.925 kVA
Isolation Coil To Contact:
5kVrms
Contact Configuration:
DPST
Number of Poles:
2
Terminal Type:
Quick Connect
Coil Resistance:
75Ω
RoHs Compliant
59 - In Stock

Estimated Lead Time: 7-13 weeks

Each (In a Box of 20)

Quantity
Unit Price (ex VAT)
Price
20
£ 18.71
£ 374.20
Mfr Part No:
HE2AN-Q-DC12V
Seller:
Panasonic
Origin:
Warranty:
Manufacturer
Data Code:
ET22536654
Order Today!
From: United Kingdom
Est Ship Date: 28 Nov, 2026
Est Fastest Delivery: 30 Nov, 2026

This is 12V dc Coil Non-Latching Relay DPNO 30A Switching Current PCB Mount HE2ANQ12 manufactured by Panasonic. The manufacturer part number is HE2AN-Q-DC12V. The product is available in pcb mount configuration. Robust coil power of 1.92w. The coil voltage of the product is 12v dc. Its accurate length is 60mm. In addition, the height is 35mm. The product comes in 33mm depth. It has equipped with 2 poles. The terminal is a quick connect type. It holds up to 75ω coil resistance.

pdf icon
HE Relay Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search HE2AN-Q-DC12V on website for other similar products.
We accept all major payment methods for all products including ET22536654. Please check your shopping cart at the time of order.
You can order Panasonic brand products with HE2AN-Q-DC12V directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic, 12V dc Coil Non-Latching Relay DPNO, 30A Switching Current PCB Mount, HE2ANQ12. You can also check on our website or by contacting our customer support team for further order details on Panasonic, 12V dc Coil Non-Latching Relay DPNO, 30A Switching Current PCB Mount, HE2ANQ12.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22536654 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number HE2AN-Q-DC12V.
Yes. You can also search HE2AN-Q-DC12V on website for other similar products.
Yes. We ship HE2AN-Q-DC12V Internationally to many countries around the world.
