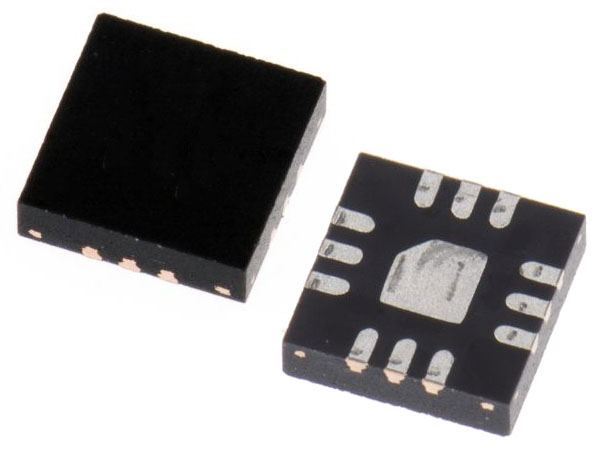

Maxim Integrated MAX1563ETC+High Side, High Side Power Switch IC 12-Pin, TQFN

Enrgtech Part No: ET11504514
|
Manufacturer Part No:
MAX1563ETC+
|
Manufacturer: Maxim Integrated

MAX1563ETC+ Maxim Integrated High Side, High Side Power Switch IC 12-Pin, TQFN

(0)

Product Information

Pin Count:

Dimensions:

4.1 x 4.1 x 0.75mm

Package Type:

TQFN

Mounting Type:

Surface Mount

Power Switch Type:

High Side

Protection Features:

Thermal Shutdown

Switch On Resistance:

50mΩ

Power Switch Topology:

High Side

Maximum Operating Current:

80µA

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

5.5 V

390 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 1.12

£ 5.60

Mfr Part No:

MAX1563ETC+

Seller:

Maxim Integrated

Origin:

Warranty:

Manufacturer

Data Code:

ET11504514

Order Today!

From: United Kingdom

Est Ship Date: 29 Jul, 2026

Est Fastest Delivery: 30 Jul, 2026

Quantity Quantity

This is High Side High Side Power Switch IC 12-Pin TQFN manufactured by Maxim Integrated. The manufacturer part number is MAX1563ETC+. The given dimensions of the product include 4.1 x 4.1 x 0.75mm. The product is available in surface mount configuration. It provides robust protection features, such as thermal shutdown. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.

A700000006853335.pdf(RS)
