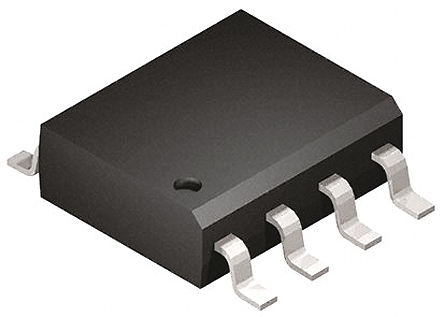

DiodesZetex AP2142SG-13High Side Power Switch IC 8-Pin, SOP

Enrgtech Part No: ET14058328
|
Manufacturer Part No:
AP2142SG-13
|
Manufacturer: Diodeszetex

AP2142SG-13 DiodesZetex High Side Power Switch IC 8-Pin, SOP

(0)

Product Information

Pin Count:

Dimensions:

4.95 x 3.95 x 1.5mm

Package Type:

SOP

Mounting Type:

Surface Mount

Number of Outputs:

Switch On Resistance:

160mΩ

Power Switch Topology:

High Side

Maximum Operating Current:

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

5.5 V

1570 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.77

£ 3.85

Mfr Part No:

AP2142SG-13

Seller:

Diodeszetex

Origin:

Warranty:

Manufacturer

Data Code:

ET14058328

Order Today!

From: United Kingdom

Est Ship Date: 27 Aug, 2026

Est Fastest Delivery: 28 Aug, 2026

Quantity Quantity

This is DiodesZetex High Side Power Switch IC 8-Pin SOP manufactured by Diodeszetex. The manufacturer part number is AP2142SG-13. The given dimensions of the product include 4.95 x 3.95 x 1.5mm. The product is available in surface mount configuration. Additionally, the product is supplied with 2 outputs. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.
