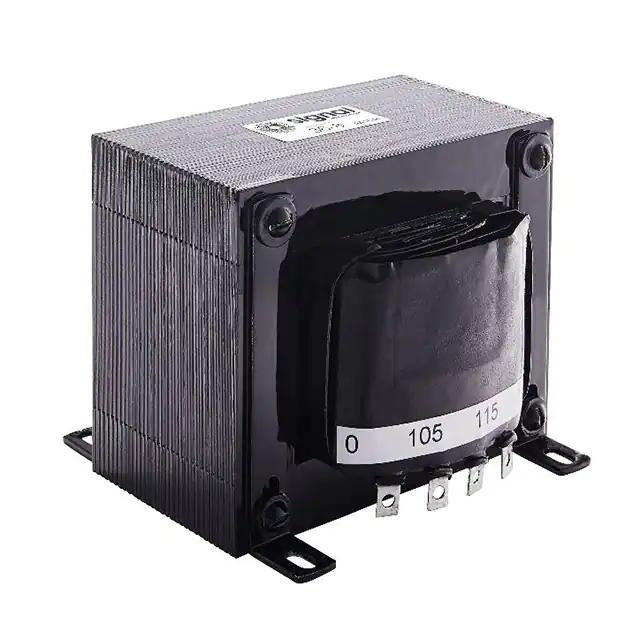

Signal Transformer 36-8

36-8 Signal Transformer
Signal Transformer

Product Information

Secondary Winding(s):
Dual
HTSUS:
8504.31.4065
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder, Quick Connect
Current - Output (Max):
Parallel 16A, Series 8A
Voltage - Primary:
105V, 115V, 125V
Height - Seated (Max):
95.30mm
Type:
Laminated Core
Primary Winding(s):
Single, Multiple Taps
REACH Status:
REACH Unaffected
Center Tap:
Yes
Voltage - Secondary (Full Load):
Parallel 18V, Series 36V
Package:
Box
Size / Dimension:
114.30mm L x 114.30mm W
standardLeadTime:
22 Weeks
Voltage - Isolation:
1500Vrms
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Weight:
11 lbs (5 kg)
Series:
-
Power - Max:
288VA
ECCN:
EAR99
Checking for live stock

This is manufactured by Signal Transformer. The manufacturer part number is 36-8. As well as [Secondary Wing(s)]. It is assigned with possible HTSUS value of 8504.31.4065. The product is rohs3 compliant. Moreover, it has solder, quick connect terminal style. The maximum product's output current is parallel 16a, series 8a. Features primary voltage 105v, 115v, 125v. It has the maximum seated height of 95.30mm It comes in laminated core configuration. Features single, multiple taps. In addition, it is reach unaffected. Center Tap - yes. Full load voltage - secondary includes parallel 18v, series 36v. It is shipped in box. The product's diameters include 114.30mm l x 114.30mm w. It has a long 22 weeks standard lead time. 1500vrms of isolation voltage. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The typical product's weight is 11 lbs (5 kg). The maximum power of the product is 288va. The product is designated with the ear99 code number
