Maximum Current:
≤50 mA
Mounting Type:
Vertical Mount
IP Rating:
IP65, IP67
Electrical Connection:
M12 4-Pin Connector
Output Type:
Analogue, PNP-NO/NC
Analogue Output:
0 → 10 V
Housing Material:
Polyacrylamide, Stainless Steel 316L
Minimum Pressure Reading:
181 (Falling) bar, 20 (Rising) bar
Pressure Reading Type:
Differential
Media Measured:
Air, Fresh Water, Hydraulic Oil, Refrigeration Fluid
Minimum Operating Temperature:
-20°C
Process Connection:
G1/4
Supply Voltage:
24 V dc
Response Time:
≤10 (Analogue) ms, ≤5 (Discrete) ms
Maximum Pressure Reading:
250 (Rising) bar, 3516 (Falling) bar
Maximum Operating Temperature:
+80°C
Accuracy:
≤0.2 (Repeat) %, ≤0.6 (Output) %, ≤1 (Overall) %

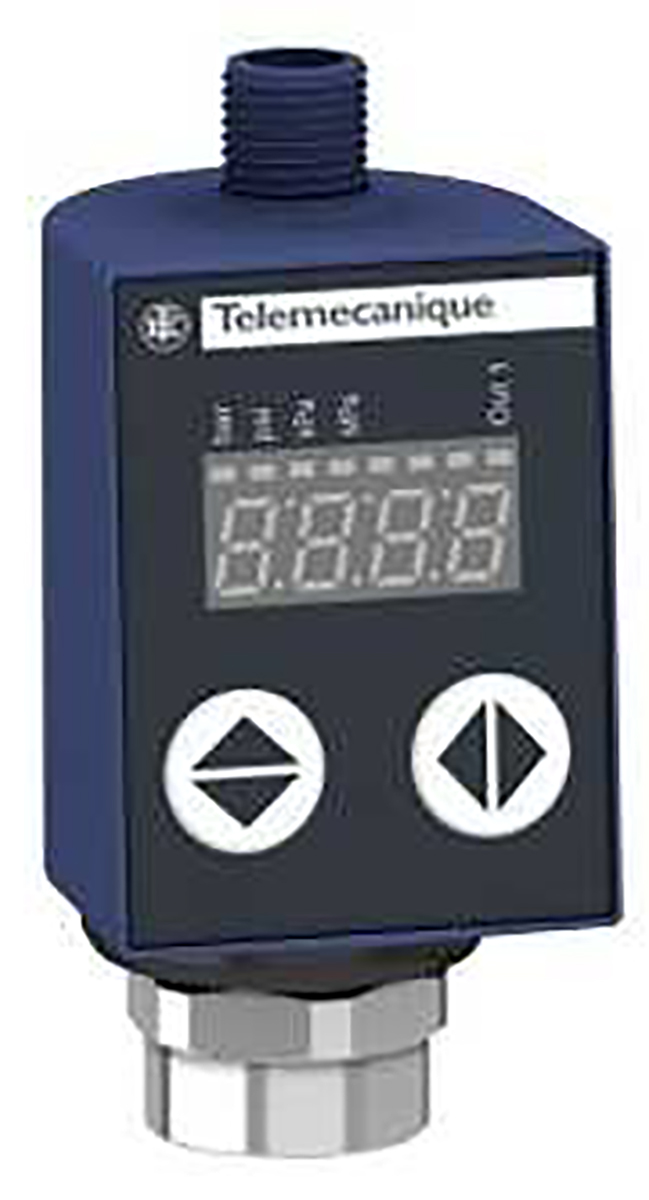

This is Air Fresh Water Hydraulic Oil Refrigerator Fluid Differential Pressure Switch manufactured by Telemecanique Sensors. The manufacturer part number is XMLR250M1P75. The product is available in vertical mount configuration. Furthermore, it has aanalogue, pnp-no/nc output. The product also features robust polyacrylamide, stainless steel 316l housing material. Whereas, the minimum operating temperature of the product is -20°c. It responds within ≤10 (analogue) ms, ≤5 (discrete) ms. It has a maximum operating temperature of +80°c. It provides high accuracy of ≤0.2 (repeat) %, ≤0.6 (output) %, ≤1 (overall) %.
