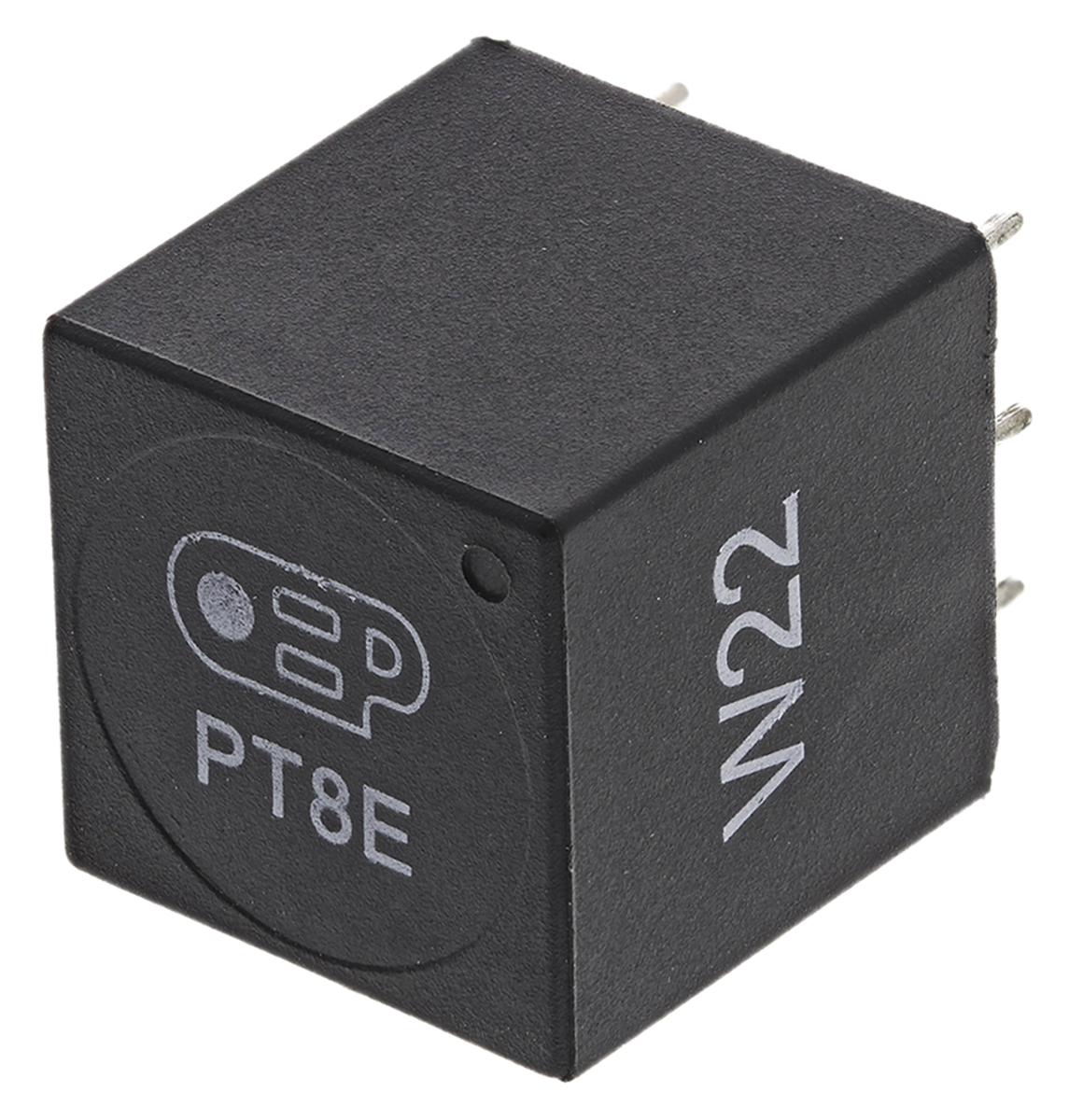

OEP Through Hole Pulse Transformer 2:1+1 Turns Ratio, 4Ω Prim. Resistance

Enrgtech Part No: ET13895490
|
Manufacturer Part No:
PT8E
|
Manufacturer: Oep

(0)

Product Information

Depth:

16mm

Width:

15mm

Length:

15mm

Dimensions:

15 x 15 x 16mm

Turns Ratio:

2:1+1

Mounting Type:

Through Hole

Leakage Inductance:

30µH

Primary DC Resistance:

4Ω

Secondary DC Resistance:

4.2Ω

Maximum Operating Frequency:

1MHz

Minimum Operating Frequency:

3kHz

Pre-order

Estimated Lead Time: 7-13 weeks

Each

Quantity

Unit Price (ex VAT)

Price

£ 6.58

£ 6.44

£ 161.00

100

£ 6.33

£ 633.00

Mfr Part No:

PT8E

Seller:

Oep

Origin:

Warranty:

Manufacturer

Data Code:

ET13895490

Order Today!

From: United Kingdom

Quantity Quantity

This is OEP Through Hole Pulse Transformer 2:1+1 Turns Ratio 4Ω Prim. Resistance manufactured by Oep. The manufacturer part number is PT8E. The product comes in 16mm depth. Furthermore, the product is 15mm wide. Its accurate length is 15mm. The given dimensions of the product include 15 x 15 x 16mm. The product is available in through hole configuration.
