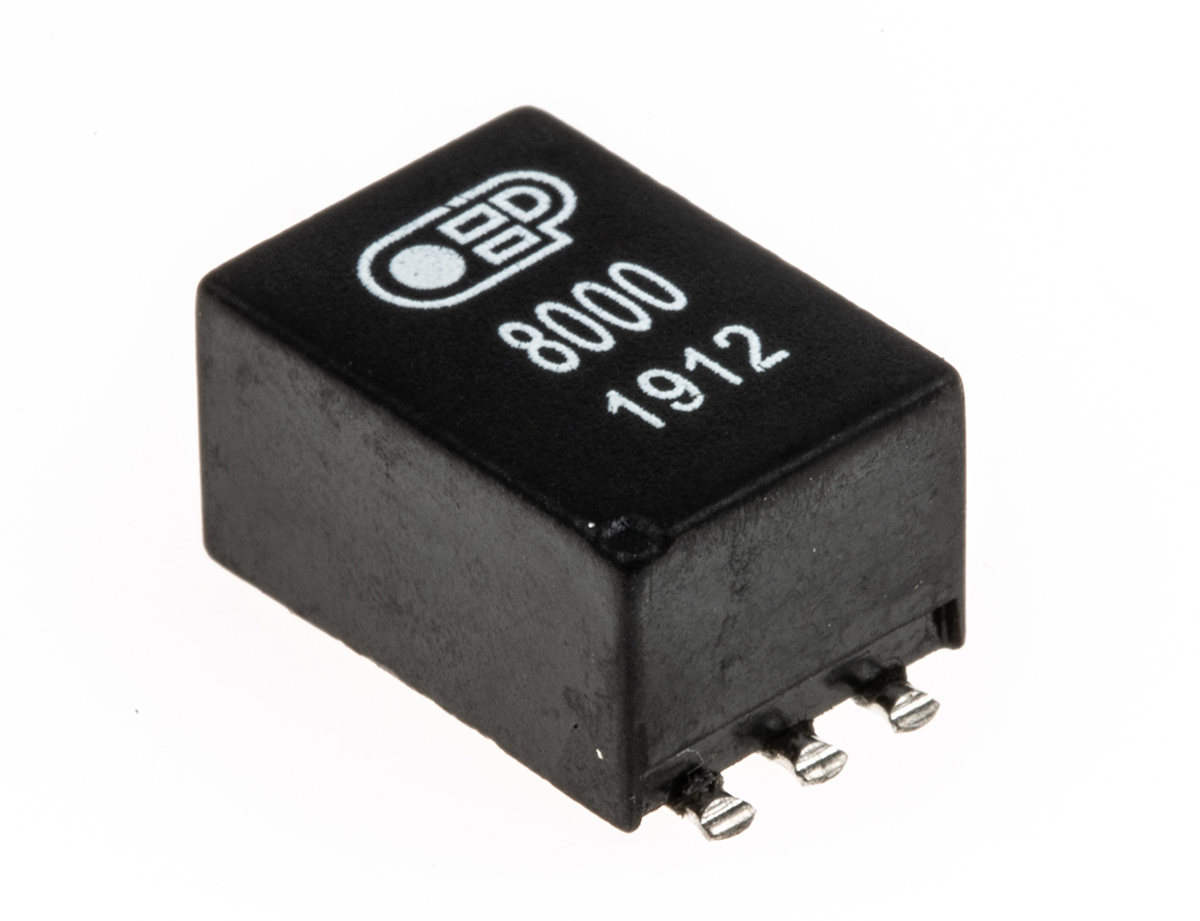

OEP Surface Mount Pulse Transformer 1:1 Turns Ratio, 3.6H Prim. Inductance, 111Ω Prim. Resistance

Enrgtech Part No: ET14072184
|
Manufacturer Part No:
OEP8000
|
Manufacturer: Oep

(0)

Product Information

Depth:

14.2mm

Width:

7.3mm

Length:

9mm

Dimensions:

9 x 7.3 x 14.2mm

Turns Ratio:

1:1

Mounting Type:

Surface Mount

Insertion Loss:

4dB

Termination Type:

Solder

Leakage Inductance:

4100µH

Primary Inductance:

3.6H

Maximum Temperature:

+85°C

Minimum Temperature:

-10°C

179 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 4.79

£ 4.39

£ 219.50

Mfr Part No:

OEP8000

Seller:

Oep

Origin:

Warranty:

Manufacturer

Data Code:

ET14072184

Order Today!

From: United Kingdom

Est Ship Date: 15 Jul, 2026

Est Fastest Delivery: 16 Jul, 2026

Quantity Quantity

This is OEP Surface Mount Pulse Transformer 1:1 Turns Ratio 3.6H Prim. Inductance 111Ω Prim. Resistance manufactured by Oep. The manufacturer part number is OEP8000. The product comes in 14.2mm depth. Furthermore, the product is 7.3mm wide. Its accurate length is 9mm. The given dimensions of the product include 9 x 7.3 x 14.2mm. The product is available in surface mount configuration. Allows 4db of insertion loss.

0900766b8008d656.pdf(RS)

0900766b806d4ee5.pdf(RS)
