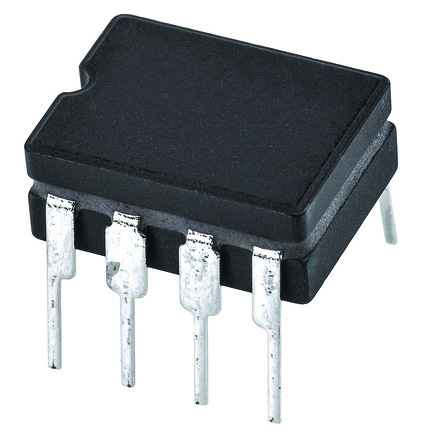

Texas Instruments UC1844J, PWM Controller, 2.5 V, 500 kHz 8-Pin, CDIP

UC1844J Texas Instruments , PWM Controller, 2.5 V, 500 kHz 8-Pin, CDIP
UC1844J Texas Instruments , PWM Controller, 2.5 V, 500 kHz 8-Pin, CDIP
Texas Instruments

Product Information

Width:
7.11mm
Height:
4.57mm
Length:
10.16mm
Topology:
Boost, Flyback, Forward
Fall Time:
150ns
Pin Count:
8
Rise Time:
150ns
Dimensions:
10.16 x 7.11 x 4.57mm
Package Type:
CDIP
Mounting Type:
Through Hole
Control Method:
Current
Output Current:
1 A
Output Voltage:
5.05 V
Number of Outputs:
1
Maximum Duty Cycle:
50%
PWM Controller Type:
Current Mode
Maximum Switching Frequency:
500 kHz
Maximum Operating Temperature:
+125 °C
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
2.5 V
RoHs Compliant
119 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 16.26
£ 16.26
5
£ 15.35
£ 76.75
10
£ 14.91
£ 149.10
Mfr Part No:
UC1844J
Seller:
Texas Instruments
Origin:
Warranty:
Manufacturer
Data Code:
ET13901228
Order Today!
From: United Kingdom
Est Ship Date: 24 Jul, 2026
Est Fastest Delivery: 27 Jul, 2026

This is PWM Controller 2.5 V 500 kHz 8-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is UC1844J. Furthermore, the product is 7.11mm wide. In addition, the height is 4.57mm. Its accurate length is 10.16mm. Topology includes boost, flyback, forward. The given dimensions of the product include 10.16 x 7.11 x 4.57mm. The product is available in through hole configuration. Additionally, the product is supplied with 1 outputs. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -55 °c.
