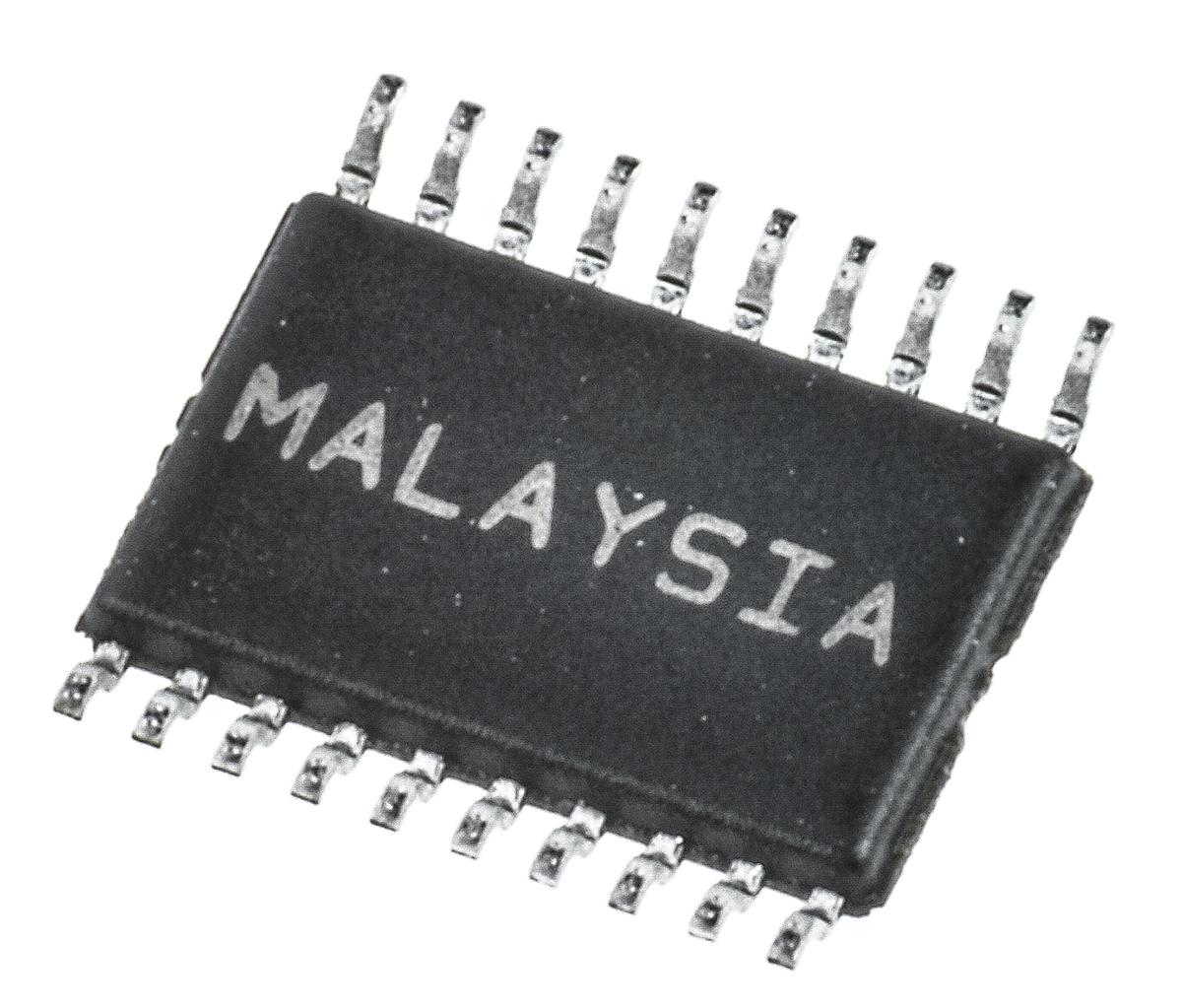

Maxim DS1305E+, Real Time Clock (RTC), 96B RAM Serial-SPI, 20-Pin TSSOP

DS1305E- Maxim DS1305E+, Real Time Clock (RTC), 96B RAM Serial-SPI, 20-Pin TSSOP
DS1305E+
DS1305E- Maxim DS1305E+, Real Time Clock (RTC), 96B RAM Serial-SPI, 20-Pin TSSOP
Maxim Integrated

Product Information

Functions:
Alarm, Calendar
User RAM:
96B
Mounting Type:
Surface Mount
Minimum Operating Temperature:
0 °C
Minimum Operating Supply Voltage:
2 V
Date Format:
DW:DM:M:Y
Height:
0.9mm
Width:
4.4mm
Length:
6.5mm
Package Type:
TSSOP
Bus Type:
Serial-SPI
Time Format:
HH:MM:SS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+70 °C
Pin Count:
20
Dimensions:
6.5 x 4.4 x 0.9mm
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Timekeeping (Max):
25.3µA ~ 81µA @ 2V ~ 5V
Operating Temperature:
0°C ~ 70°C
Memory Size:
96B
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
Type:
Clock/Calendar
REACH Status:
REACH Unaffected
Date Format:
YY-MM-DD-dd
Time Format:
HH:MM:SS (12/24 hr)
Interface:
SPI
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Battery:
2V ~ 5.5V
standardLeadTime:
20 Weeks
Features:
Alarm, Leap Year, NVSRAM, Trickle-Charger
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
20-TSSOP
Voltage - Supply:
2V ~ 5.5V
Base Product Number:
DS1305
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Maxim Real Time Clock (RTC) 96B RAM Serial-SPI 20-Pin TSSOP manufactured by Maxim Integrated. The manufacturer part number is DS1305E+. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is 0 °c. In addition, the height is 0.9mm. Furthermore, the product is 4.4mm wide. Its accurate length is 6.5mm. It has a maximum operating temperature of +70 °c. The given dimensions of the product include 6.5 x 4.4 x 0.9mm. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has 0°c ~ 70°c operating temperature range. It holds a typical memory size of 96b. Moreover, the product comes in [Package/ Case]. It comes in clock/calendar configuration. In addition, it is reach unaffected. A bespoke product is spi interface. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). It has a long 20 weeks standard lead time. The splendid features of the product include alarm, leap year, nvsram, trickle-charger. 20-tssop is the supplier device package value. It has optimum voltage supply of 2v ~ 5.5v. Moreover, it corresponds to ds1305, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
DS1305 Serial Alarm Real-Time Clock Data Sheet(Technical Reference)
pdf icon
Halogen Certificate(Environmental Information)
pdf icon
Red Phosphorous Certificate(Environmental Information)
pdf icon
Maxim Integrated RoHS3 Cert(Environmental Information)
pdf icon
DS1305(Datasheets)
pdf icon
Tips for Writing Bulletproof Real-Time Clock Control Code(Other Related Documents)
pdf icon
Oscillator Design Considerations for Low-Current Applications(Mfg Application Notes)
pdf icon
Interfacing a DS1305 RTC with an 8051-Type Microcontroller(Mfg Application Notes)
pdf icon
Selecting a Backup Source for Real-Time Clocks(Mfg Application Notes)
pdf icon
State Machine Logic in Binary-Coded Decimal (BCD)-Formatted Real-Time Clocks(Mfg Application Notes)
