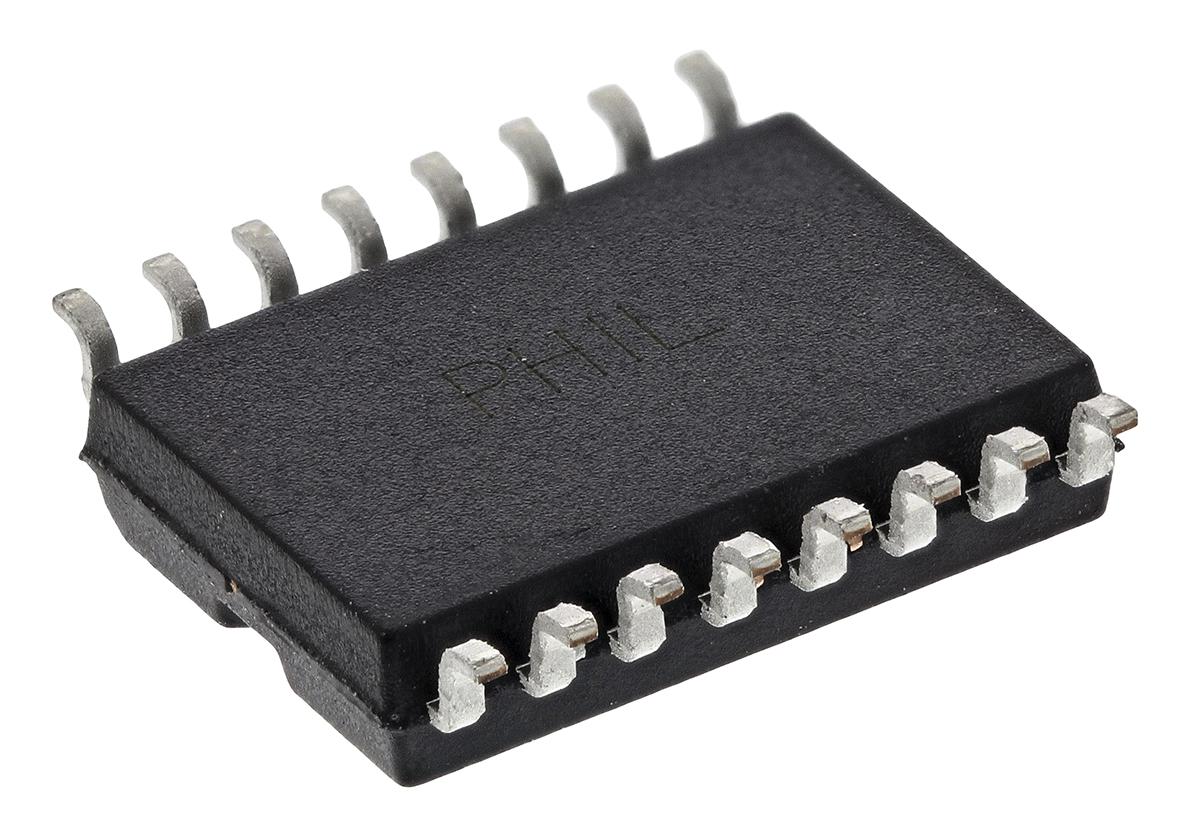

Maxim DS1339C-33#, Real Time Clock (RTC) Serial-I2C, 16-Pin SOIC

DS1339C-33- Maxim DS1339C-33#, Real Time Clock (RTC) Serial-I2C, 16-Pin SOIC
DS1339C-33#
DS1339C-33- Maxim DS1339C-33#, Real Time Clock (RTC) Serial-I2C, 16-Pin SOIC
Maxim Integrated

Product Information

Functions:
Battery Backup, Calendar
Dimensions:
10.5 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
2.97 V
Date Format:
DW:DM:M:Y
Height:
2.35mm
Width:
7.6mm
Length:
10.5mm
Package Type:
SOIC
Bus Type:
Serial-I2C
Time Format:
HH:MM:SS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Timekeeping (Max):
200µA @ 5.5V
Operating Temperature:
-40°C ~ 85°C
Memory Size:
-
Package / Case:
16-SOIC (0.295", 7.50mm Width)
Type:
Clock/Calendar
REACH Status:
REACH Unaffected
Date Format:
YY-MM-DD-dd
Time Format:
HH:MM:SS (12/24 hr)
Interface:
I²C, 2-Wire Serial
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Battery:
1.3V ~ 3.7V
standardLeadTime:
6 Weeks
Features:
Alarm, Leap Year, Square Wave Output, Trickle-Charger
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
16-SOIC
Voltage - Supply:
2.97V ~ 5.5V
Base Product Number:
DS1339
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Maxim Real Time Clock (RTC) Serial-I2C 16-Pin SOIC manufactured by Maxim Integrated. The manufacturer part number is DS1339C-33#. The given dimensions of the product include 10.5 x 7.6 x 2.35mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 2.35mm. Furthermore, the product is 7.6mm wide. Its accurate length is 10.5mm. It has a maximum operating temperature of +85 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in clock/calendar configuration. In addition, it is reach unaffected. A bespoke product is i²c, 2-wire serial interface. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The splendid features of the product include alarm, leap year, square wave output, trickle-charger. 16-soic is the supplier device package value. It has optimum voltage supply of 2.97v ~ 5.5v. Moreover, it corresponds to ds1339, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
MAX6325/MAX6341/MAX6350, 1ppm/degC, Low-Noise, +2.5V/+4.096V/+5V Voltage References(Technical Reference)
pdf icon
Maxim Integrated RoHS3 Cert(Environmental Information)
pdf icon
Red Phosphorous Certificate(Environmental Information)
pdf icon
Maxim Integrated REACH211(Environmental Information)
pdf icon
DS1339(Datasheets)
pdf icon
Tips for Writing Bulletproof Real-Time Clock Control Code(Other Related Documents)
pdf icon
Oscillator Design Considerations for Low-Current Applications(Mfg Application Notes)
pdf icon
FAQ About the Integrated-Crystal Package Option(Mfg Application Notes)
pdf icon
Selecting a Backup Source for Real-Time Clocks(Mfg Application Notes)
pdf icon
State Machine Logic in Binary-Coded Decimal (BCD)-Formatted Real-Time Clocks(Mfg Application Notes)
