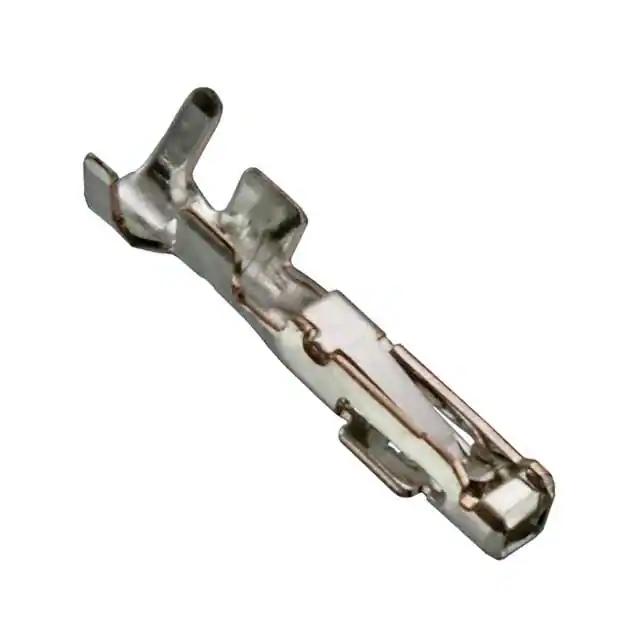

2.0 W/B Dual Grid Rcpt Crmp TerChn

5016471000 2.0 W/B Dual Grid Rcpt Crmp TerChn

(0)

Product Information

Minimum Wire Size mm²:

0.124mm²

Maximum Wire Size mm²:

0.34mm²

Gender:

Female

Minimum Wire Size AWG:

26AWG

Contact Plating:

Tin

Termination Method:

Compression, Crimp

For Use With:

501646 Receptacle Housing

Maximum Wire Size AWG:

22AWG

Series Number:

501647

Maximum Operating Temperature:

+105°C

Minimum Operating Temperature:

-40°C

Contact Material:

Copper Alloy

Checking for live stock

This is 2.0 W/B Dual Grid Rcpt Crmp TerChn manufactured by Molex. The manufacturer part number is 5016471000. In addition, female is the available "Gender" of the product. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Pin/Socket Info: socket. In addition, it is reach unaffected. It is shipped in tape & reel (tr). Moreover, the product has a wire gauge of 22-26 awg. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has a long 11 weeks standard lead time. The product igrid 501647, is a highly preferred choice for users. It also incorporates crimp contact terminals. Moreover, it corresponds to 501647, a base product number of the product. The product is designated with the ear99 code number

Datasheet 5016471000(Technical Reference)

501647-1000 RoHS Cert of Compliance(Environmental Information)

Multiple Devices Origin 24/Aug/2016(PCN Assembly/Origin)

50164yy00 Product Improvement 30/Sep/2020(PCN Design/Specification)

5016471000/1100(Datasheets)

501647(Datasheets)

501647-1000.pdf(3D Drawings)
