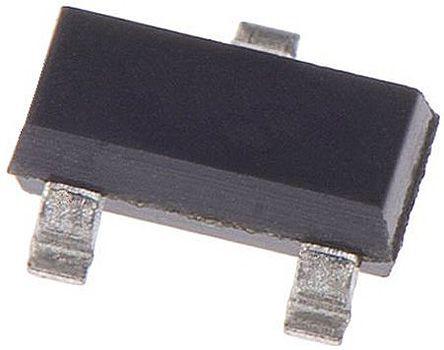

Taiwan Semi BAV70 RF Dual SMT Diode, Common Cathode, 70V 200mA, 3-Pin SOT-23

BAV70-RF Taiwan Semi BAV70 RF Dual SMT Diode, Common Cathode, 70V 200mA, 3-Pin SOT-23
BAV70 RF
BAV70-RF Taiwan Semi BAV70 RF Dual SMT Diode, Common Cathode, 70V 200mA, 3-Pin SOT-23
Taiwan Semiconductor

Product Information

Dimensions:
0.95 x 3.05 x 1.4mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Continuous Forward Current:
200mA
Peak Reverse Recovery Time:
6ns
Maximum Forward Voltage Drop:
1.25V
Height:
0.95mm
Peak Reverse Current:
2.5µA
Width:
1.4mm
Length:
3.05mm
Package Type:
SOT-23
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Diode Type:
Silicon Junction
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Common Cathode
Pin Count:
3
Peak Reverse Repetitive Voltage:
70V
RoHs Compliant
Checking for live stock

This is Taiwan Semi Dual SMT Diode Common Cathode 70V 200mA 3-Pin SOT-23 manufactured by Taiwan Semiconductor. The manufacturer part number is BAV70 RF. The given dimensions of the product include 0.95 x 3.05 x 1.4mm. The product is available in surface mount configuration. In addition, the height is 0.95mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3.05mm. Whereas, the minimum operating temperature of the product is -55 °c. It is designed with a silicon junction diode. It has a maximum operating temperature of +150 °c. The diode features a common cathode configuration.

pdf icon
BAW56, BAV70, BAV99 225mW SMD Switching Diode Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BAV70 RF on website for other similar products.
We accept all major payment methods for all products including ET13959894. Please check your shopping cart at the time of order.
You can order Taiwan Semiconductor brand products with BAV70 RF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rectifier Diodes & Schottky Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Taiwan Semi BAV70 RF Dual SMT Diode, Common Cathode, 70V 200mA, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Taiwan Semi BAV70 RF Dual SMT Diode, Common Cathode, 70V 200mA, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13959894 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Taiwan Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number BAV70 RF.
Yes. You can also search BAV70 RF on website for other similar products.
Yes. We ship BAV70 RF Internationally to many countries around the world.
