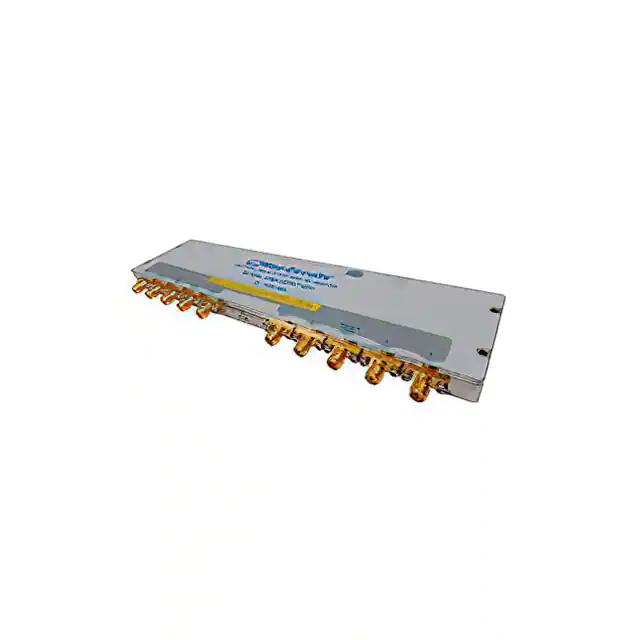

Mini-Circuits USB-2SP4T-63H

USB-2SP4T-63H Mini-Circuits
Mini-Circuits

Product Information

Frequency Range:
10MHz ~ 6GHz
HTSUS:
8543.70.9860
RoHS Status:
RoHS non-compliant
Operating Temperature:
0°C ~ 50°C
Package / Case:
Module, SMA Connectors
Insertion Loss:
3.3dB
RF Type:
Cellular
P1dB:
33dBm
Impedance:
50Ohm
Topology:
Absorptive
IIP3:
50dBm
Package:
Box
Isolation:
36dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SP4T
standardLeadTime:
10 Weeks
Features:
-
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
-
Test Frequency:
6GHz
Voltage - Supply:
4.75V ~ 5.25V
ECCN:
EAR99
Checking for live stock

This is manufactured by Mini-Circuits. The manufacturer part number is USB-2SP4T-63H. The frequency range includes 10mhz ~ 6ghz. It is assigned with possible HTSUS value of 8543.70.9860. The product is rohs non-compliant. The product has 0°c ~ 50°c operating temperature range. Moreover, the product comes in [Package/ Case]. Allows 3.3db of insertion loss. This is a sort of cellular RF. The output power level of the product is 33dbm. It has an impedance value of 50ohm. Topology includes absorptive. The IIP3 value of 50dbm. It is shipped in box. Features a 36db isolation. Its typical moisture sensitivity level is 1 (unlimited). It has an integral sp4t circuit. It has a long 10 weeks standard lead time. The product is available in chassis mount configuration. It features a test frequency of 6ghz. It has optimum voltage supply of 4.75v ~ 5.25v. The product is designated with the ear99 code number

pdf icon
USB-2SP4T-63H(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search USB-2SP4T-63H on website for other similar products.
We accept all major payment methods for all products including ET20934993. Please check your shopping cart at the time of order.
You can order Mini-Circuits brand products with USB-2SP4T-63H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Mini-Circuits USB-2SP4T-63H. You can also check on our website or by contacting our customer support team for further order details on Mini-Circuits USB-2SP4T-63H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20934993 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Mini-Circuits" products on our website by using Enrgtech's Unique Manufacturing Part Number USB-2SP4T-63H.
Yes. You can also search USB-2SP4T-63H on website for other similar products.
Yes. We ship USB-2SP4T-63H Internationally to many countries around the world.
