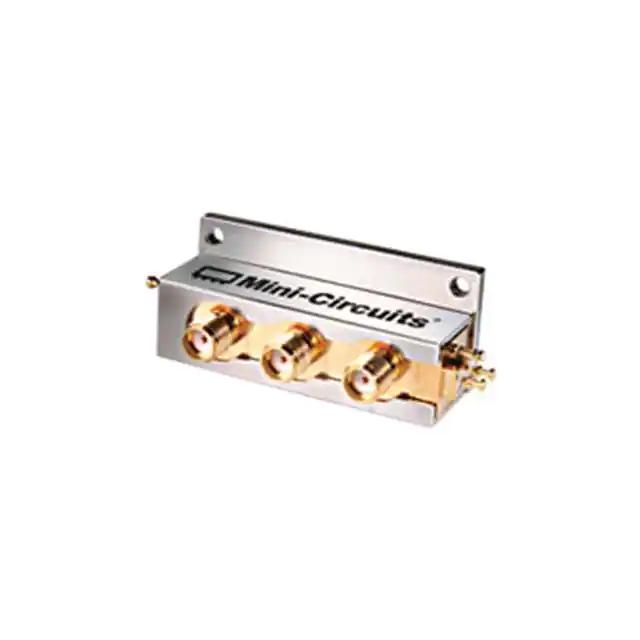

Mini-Circuits ZX80-DR230-S+

ZX80-DR230-S- Mini-Circuits ZX80-DR230-S+
Mini-Circuits

Product Information

Frequency Range:
DC ~ 3GHz
HTSUS:
8543.70.9860
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Module, SMA Connectors
RF Type:
General Purpose
P1dB:
80dBm
Impedance:
50Ohm
Topology:
Absorptive
IIP3:
55dBm
Package:
Tray
Isolation:
48dB
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPDT
standardLeadTime:
8 Weeks
Features:
-
Insertion Loss:
1.2dB
Series:
-
Supplier Device Package:
-
Test Frequency:
3GHz
Voltage - Supply:
2.7V ~ 5V
ECCN:
EAR99
Checking for live stock

This is manufactured by Mini-Circuits. The manufacturer part number is ZX80-DR230-S+. The frequency range includes dc ~ 3ghz. It is assigned with possible HTSUS value of 8543.70.9860. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in [Package/ Case]. This is a sort of general purpose RF. The output power level of the product is 80dbm. It has an impedance value of 50ohm. Topology includes absorptive. The IIP3 value of 55dbm. It is shipped in tray. Features a 48db isolation. Its typical moisture sensitivity level is not applicable. It has an integral spdt circuit. It has a long 8 weeks standard lead time. Allows 1.2db of insertion loss. It features a test frequency of 3ghz. It has optimum voltage supply of 2.7v ~ 5v. The product is designated with the ear99 code number

pdf icon
ZX80-DR230-S+(Datasheets)
