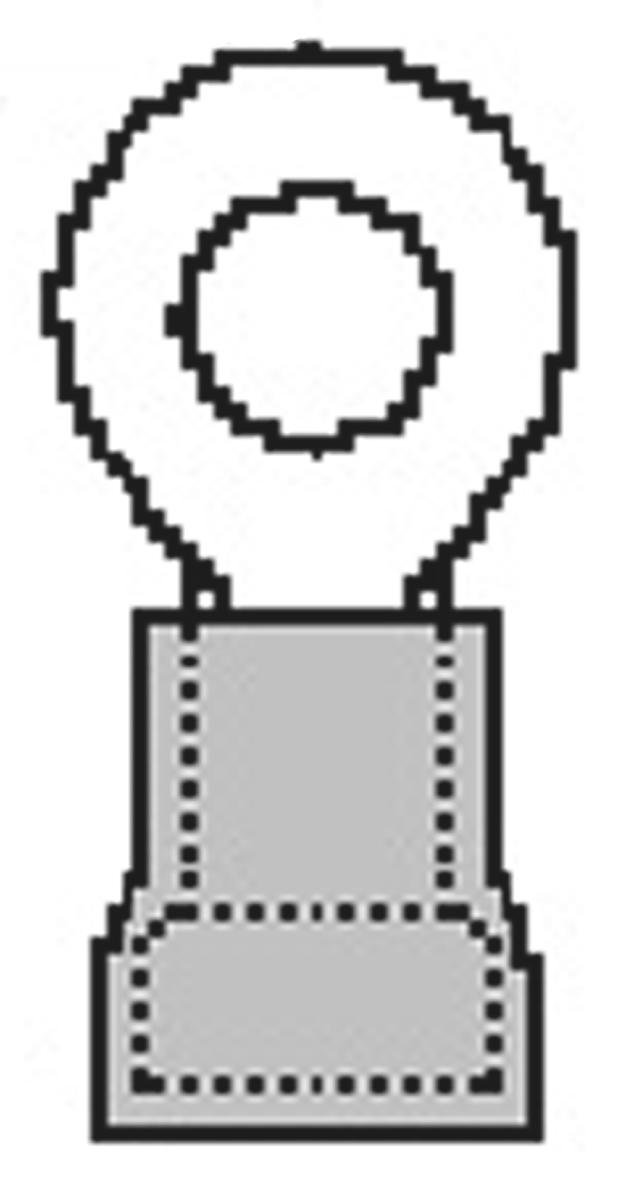

This is 800 Series Insulated Tin Plated Crimp Ring Terminal M6 (1/4) Stud Size 4mm² to 6mm² 12AWG to 10AWG Yellow manufactured by Molex. The manufacturer part number is 19073-0231. The product 800, is a highly preferred choice for users. It is 1.02mm thick. It has a robust nylon insulation material. Insulation Option: insulated. The product is made from sturdy copper materials. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs non-compliant. It is 0.040" (1.02mm) thick. It is designed from highly reliable polyamide (pa), nylon insulating material. The product has an integral 1.362" (34.59mm) overall length. In addition, it is reach info available upon request. The product's insulation diameter includes 0.225" (5.72mm). The terminal is a circular type. It is shipped in bag. Moreover, the product has a wire gauge of 10-12 awg. Its outer edges are 0.602" (15.29mm) wide. Furthermore, the product is galvanized with excellent electro-tin contact finishing. Its typical moisture sensitivity level is vendor undefined. The product features crimp termination style. The product consists of 1/4 stud. The product is available in free hanging (in-line) configuration. It has a classic yellow colour. The product 19073, is a highly preferred choice for users. The product is designated with the ear99 code number
For more information please check the datasheets.
