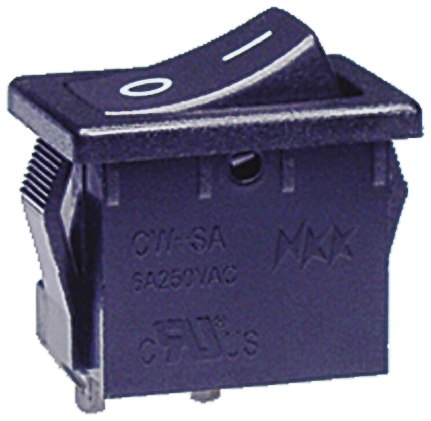

NKK Switches Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

CW-SA11KKNFS NKK Switches Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount
CW-SA11KKNFS NKK Switches Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount
NKK Switches

Product Information

Actuator Shape:
Rectangular
Contact Resistance:
20mΩ
Panel Cut Out Height:
19.2mm
Illuminated:
No
Mounting Type:
Panel Mount
Legend Text:
On (symbol)' Off (symbol)
Contact Current Rating:
6 A
Minimum Operating Temperature:
-10°C
Operating Temperature Range:
-10 → +70°C
Panel Cut Out Size:
19.2 x 12.9mm
Legend Text Colour:
White
Contact Configuration:
SPST
Case Material:
Polyamide
Panel Cut Out Width:
12.9mm
AC Voltage Rating:
250V
Mechanical Life:
30000Operations
Switch Operation:
On-None-Off
Maximum Operating Temperature:
+70°C
Terminal Type:
Solder
Contact Material:
Silver Plated Copper
RoHs Compliant
Checking for live stock

This is Single Pole Single Throw (SPST) Latching Rocker Switch Panel Mount manufactured by NKK Switches. The manufacturer part number is CW-SA11KKNFS. It features a 20mω contact resistance. The product is available in panel mount configuration. Whereas, the minimum operating temperature of the product is -10°c. The product also provide mechanical stability with 30000operations. It has a maximum operating temperature of +70°c. The terminal is a solder type. The product is made from sturdy silver plated copper materials.

pdf icon
CWSC Series LED Miniature Power Rockers Data Sheet(Technical Reference)
