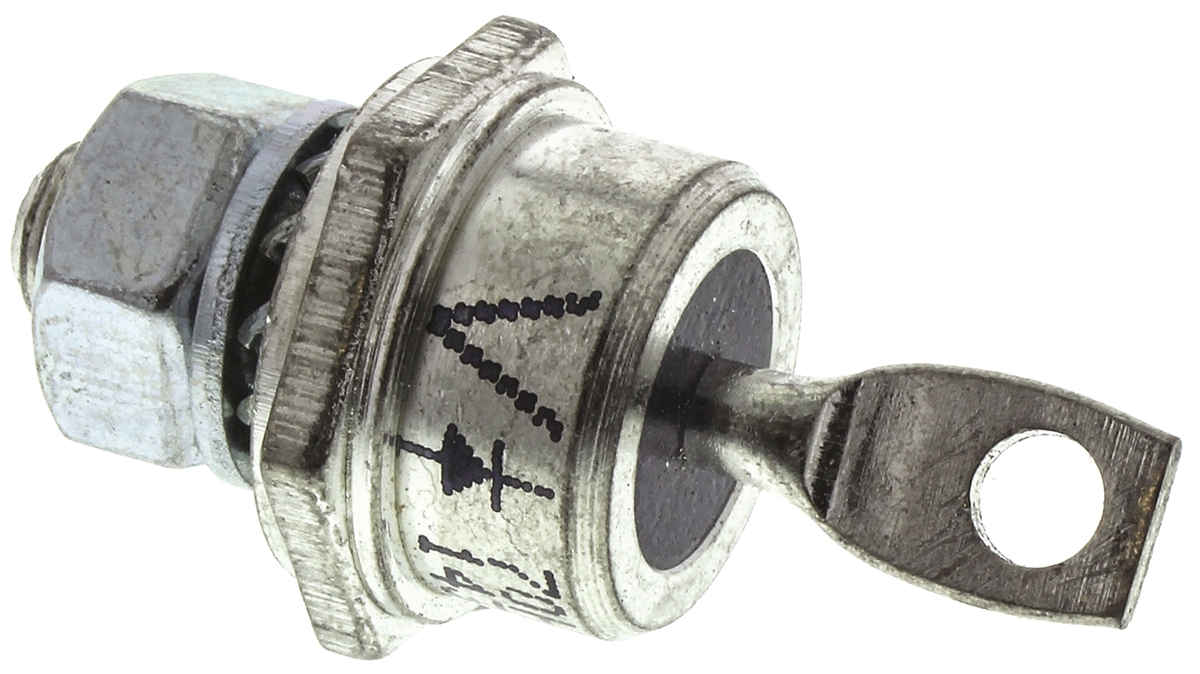

Vishay 70HFR80 Thread Mount Switching Diode, Stud Anode, 800V 70A, 2-Pin DO-5

70HFR80 Vishay Thread Mount Switching Diode, Stud Anode, 800V 70A, 2-Pin DO-5

(0)

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

1.3kA

Maximum Forward Voltage Drop:

1.35V

Maximum Continuous Forward Current:

70A

Rectifier Type:

General Purpose

Package Type:

DO-5

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Anode

Pin Count:

Peak Reverse Repetitive Voltage:

800V

Checking for live stock

This is Thread Mount Switching Diode Stud Anode 800V 70A 2-Pin DO-5 manufactured by Vishay. The manufacturer part number is 70HFR80. The product is available in thread mount configuration. It is designed with a rectifier diode. The diode features a stud anode configuration.
