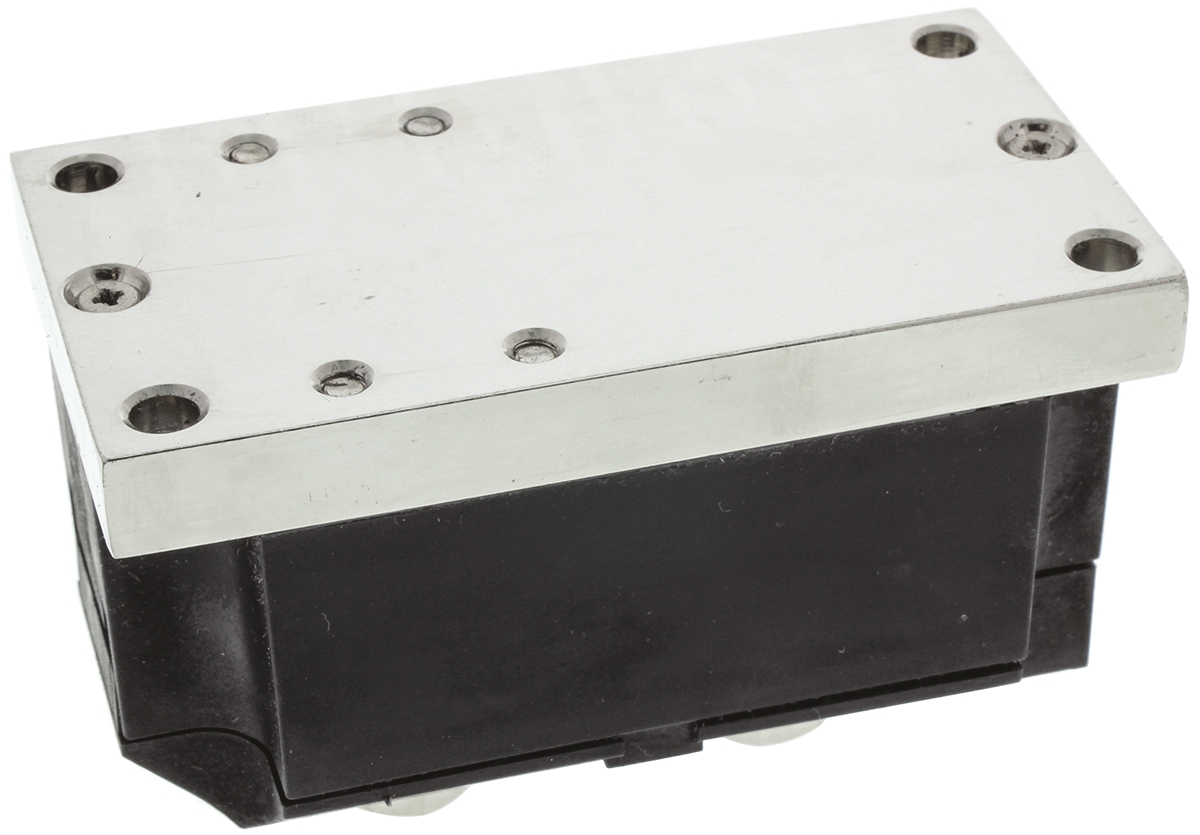

Vishay VS-VSKE320-20PBF High Voltage Diode Module, 2000V 320A, 2-Pin MAGN-A-PAK

VS-VSKE320-20PBF Vishay High Voltage Diode Module, 2000V 320A, 2-Pin MAGN-A-PAK
VS-VSKE320-20PBF
VS-VSKE320-20PBF Vishay High Voltage Diode Module, 2000V 320A, 2-Pin MAGN-A-PAK
Vishay

Product Information

Mounting Type:
Panel Mount
Diode Technology:
Silicon Junction
Peak Non-Repetitive Forward Surge Current:
10.6kA
Maximum Forward Voltage Drop:
1.28V
Maximum Continuous Forward Current:
320A
Rectifier Type:
Recovery Rectifier
Package Type:
MAGN-A-PAK
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
2000V
RoHs Compliant
Checking for live stock

This is High Voltage Diode Module 2000V 320A 2-Pin MAGN-A-PAK manufactured by Vishay. The manufacturer part number is VS-VSKE320-20PBF. The product is available in panel mount configuration. It is designed with a rectifier diode. The diode features a single configuration.
