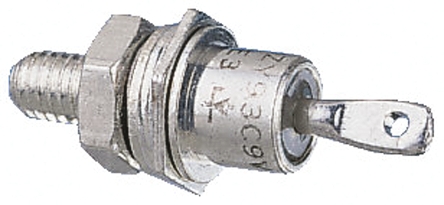

Vishay VS-80PFR80 Diode, Stud Anode, 800V 80A, 2-Pin DO-2013AB

VS-80PFR80 Vishay Diode, Stud Anode, 800V 80A, 2-Pin DO-2013AB

(0)

Product Information

Mounting Type:

Stud

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

1.6kA

Maximum Forward Voltage Drop:

1.4V

Maximum Continuous Forward Current:

80A

Rectifier Type:

Recovery Rectifier

Package Type:

DO-2013AB

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Anode

Pin Count:

Peak Reverse Repetitive Voltage:

800V

Checking for live stock

This is Diode Stud Anode 800V 80A 2-Pin DO-2013AB manufactured by Vishay. The manufacturer part number is VS-80PFR80. The product is available in stud configuration. It is designed with a rectifier diode. The diode features a stud anode configuration.
