Mounting Type:
Surface Mount
Diode Technology:
Schottky Barrier
Peak Reverse Recovery Time:
5ns
Peak Non-Repetitive Forward Surge Current:
600mA
Maximum Continuous Forward Current:
200mA
Rectifier Type:
Schottky Diode

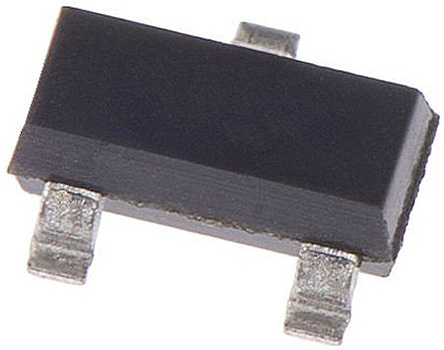

Package Type:
SOT-23
Number of Elements per Chip:
2
Diode Type:
Schottky
Diode Configuration:
Series
Pin Count:
3
Peak Reverse Repetitive Voltage:
30V
HTSUS:
8541.10.0070
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-236-3, SC-59, SOT-23-3
Diode Configuration:
1 Pair Series Connection
Reverse Recovery Time (trr):
5 ns
Operating Temperature - Junction:
125°C (Max)
REACH Status:
REACH Unaffected
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
800 mV @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
30 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
200mA (DC)
standardLeadTime:
30 Weeks
Current - Reverse Leakage @ Vr:
2 µA @ 25 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23-3 (TO-236)
Technology:
Schottky
Base Product Number:
BAT54
ECCN:
EAR99
