Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Peak Reverse Recovery Time:
6ns
Peak Non-Repetitive Forward Surge Current:
4A
Maximum Forward Voltage Drop:
1.25V
Maximum Continuous Forward Current:
200mA
Rectifier Type:
General Purpose

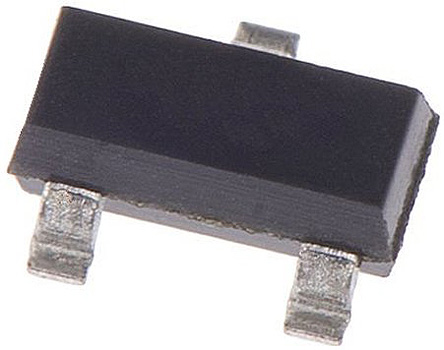

Package Type:
SOT-23
Number of Elements per Chip:
2
Diode Type:
High Speed
Diode Configuration:
Common Anode
Pin Count:
3
Peak Reverse Repetitive Voltage:
70V
HTSUS:
8541.10.0070
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-236-3, SC-59, SOT-23-3
Diode Configuration:
1 Pair Common Anode
Reverse Recovery Time (trr):
6 ns
Operating Temperature - Junction:
-55°C ~ 150°C
REACH Status:
REACH Unaffected
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
1.25 V @ 150 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
70 V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
200mA (DC)
standardLeadTime:
30 Weeks
Current - Reverse Leakage @ Vr:
2.5 µA @ 70 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23-3 (TO-236)
Technology:
Standard
Base Product Number:
BAW56
ECCN:
EAR99
