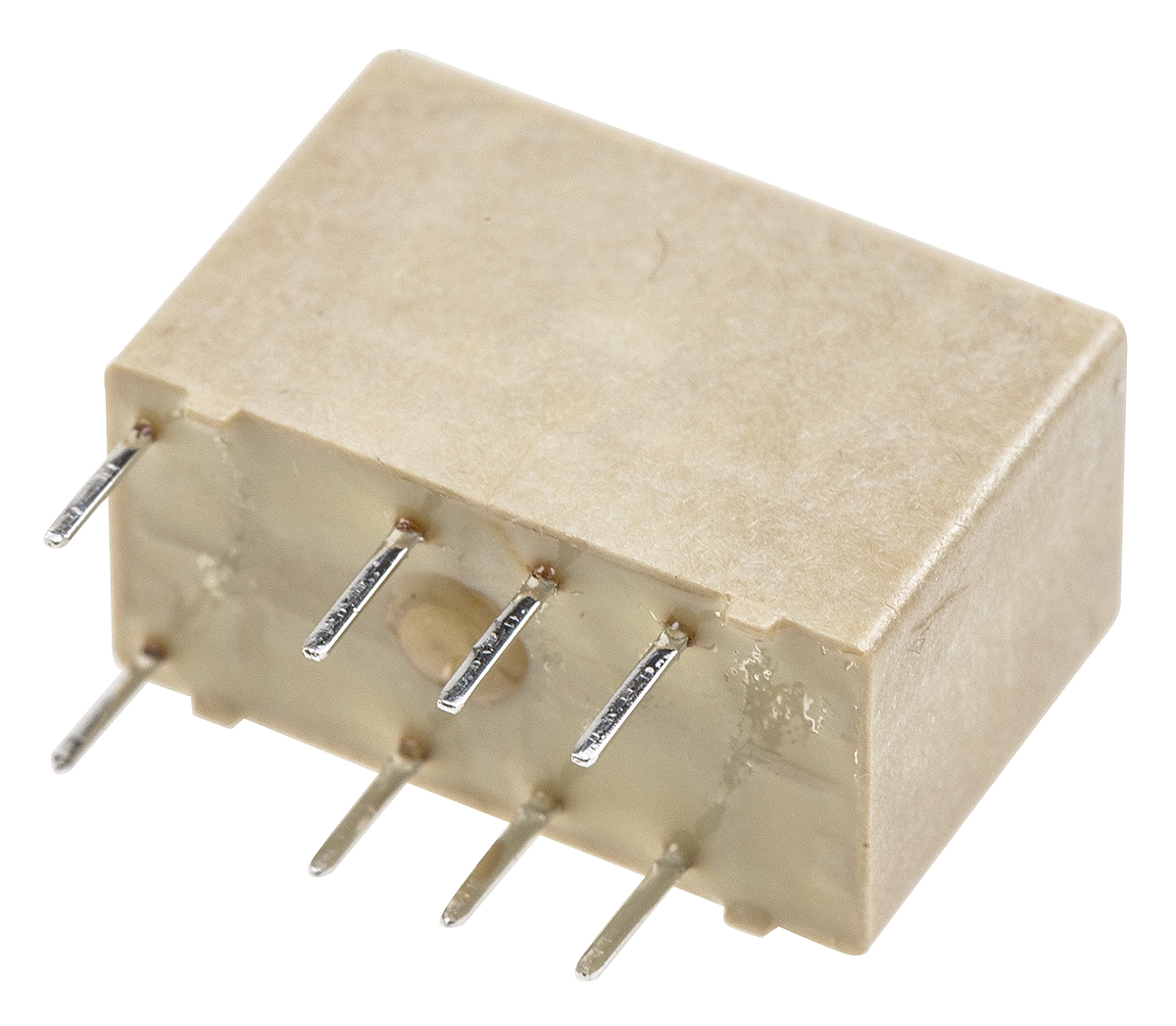

TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 5 A

V23079A1005B301 TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 5 A
V23079A1005B301
TE Connectivity

Product Information

Dimensions:
14.5 x 9.8 x 7.2mm
Coil Voltage:
24V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
4100Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
2kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
14.5mm
Features:
Bifurcated Contacts, Immersion cleanable
Mounting Type:
PCB Mount
Series:
Axicom P2
Depth:
7.4mm
Height:
9.8mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 24V dc Coil 5 A manufactured by TE Connectivity. The manufacturer part number is V23079A1005B301. The given dimensions of the product include 14.5 x 9.8 x 7.2mm. The coil voltage of the product is 24v dc. The terminal is a through hole type. It holds up to 4100ω coil resistance. Robust coil power of 140mw. It has a maximum operating temperature of +85°c. Its accurate length is 14.5mm. The splendid features of the product include bifurcated contacts, immersion cleanable. The product is available in pcb mount configuration. The product axicom p2, is a highly preferred choice for users. The product comes in 7.4mm depth. In addition, the height is 9.8mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 2 poles. The product is made from sturdy gold plated materials.
