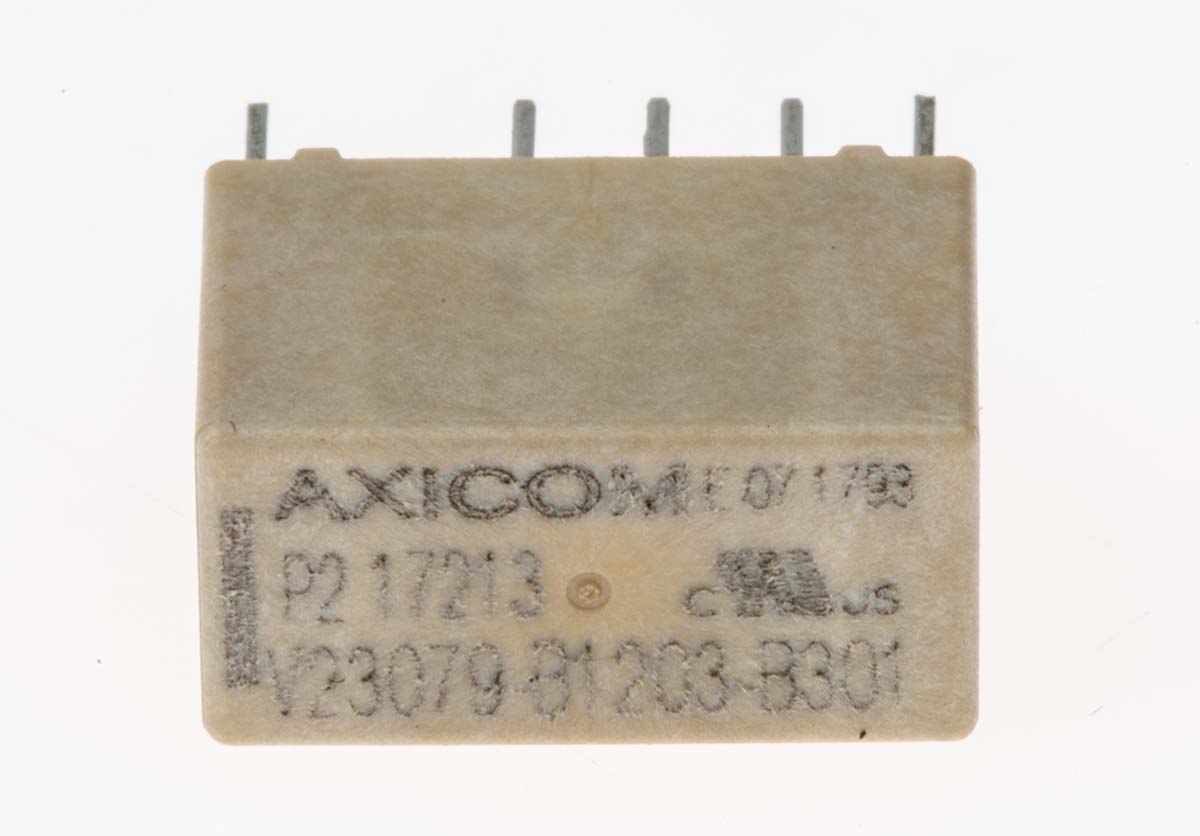

DPDT PCB Mount Latching Relay 5 A, 12V dc For Use In Signal Applications

V23079-B1203-B301 DPDT PCB Mount Latching Relay 5 A, 12V dc For Use In Signal Applications
V23079-B1203-B301
V23079-B1203-B301
TE Connectivity

Product Information

Dimensions:
14.5 x 9.8 x 7.2mm
Coil Voltage:
12V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
1029Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-40 → +85°C
Latching:
Yes
Contact Configuration:
DPDT
Length:
14.5mm
Mounting Type:
PCB Mount
Depth:
7.2mm
Height:
9.8mm
Maximum Switching Current DC:
5 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Latching Relay 5 A 12V dc For Use In Signal Applications manufactured by TE Connectivity. The manufacturer part number is V23079-B1203-B301. The given dimensions of the product include 14.5 x 9.8 x 7.2mm. The coil voltage of the product is 12v dc. The terminal is a through hole type. It holds up to 1029ω coil resistance. Robust coil power of 140mw. It has a maximum operating temperature of +85°c. Its accurate length is 14.5mm. The product is available in pcb mount configuration. The product comes in 7.2mm depth. In addition, the height is 9.8mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy gold plated materials.
