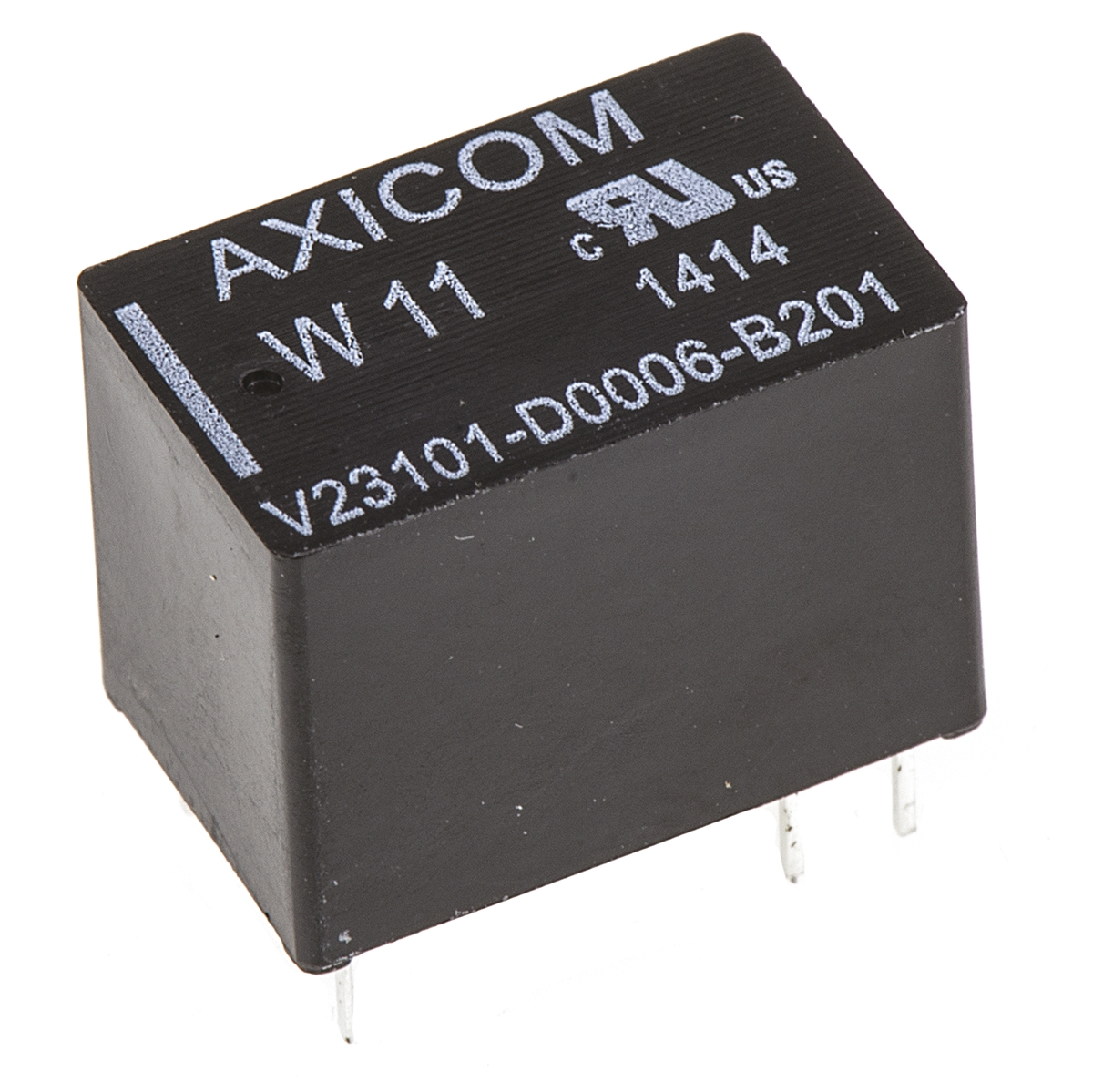

TE Connectivity SPDT Non-Latching Relay PCB Mount, 12V dc Coil, 1 A

V23101D6B201 TE Connectivity SPDT Non-Latching Relay PCB Mount, 12V dc Coil, 1 A
V23101D6B201
V23101D6B201
V23101D6B201 TE Connectivity SPDT Non-Latching Relay PCB Mount, 12V dc Coil, 1 A
TE Connectivity

Product Information

Dimensions:
15.4 x 11.5 x 10mm
Coil Voltage:
12V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
320Ω
Life:
10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
Coil Power:
450mW
Maximum Switching Voltage DC:
120V dc
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
1.8kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
3A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
SPST
Depth:
10mm
Features:
Multi Purpose Relay, Immersion Cleanable
Mounting Type:
PCB Mount
Series:
IM-E
Length:
15.4mm
Height:
11.5mm
Maximum Switching Current DC:
3 A
Maximum Switching Voltage AC:
125V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
1
Contact Material:
PdRu
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 12V dc Coil 1 A manufactured by TE Connectivity. The manufacturer part number is V23101D6B201. The given dimensions of the product include 15.4 x 11.5 x 10mm. The coil voltage of the product is 12v dc. The terminal is a through hole type. It holds up to 320ω coil resistance. Robust coil power of 450mw. It has a maximum operating temperature of +85°c. The product comes in 10mm depth. The splendid features of the product include multi purpose relay, immersion cleanable. The product is available in pcb mount configuration. The product im-e, is a highly preferred choice for users. Its accurate length is 15.4mm. In addition, the height is 11.5mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. The product is made from sturdy pdru materials.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search V23101D6B201 on website for other similar products.
We accept all major payment methods for all products including ET14127353. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with V23101D6B201 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Signal Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity SPDT Non-Latching Relay PCB Mount, 12V dc Coil, 1 A. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity SPDT Non-Latching Relay PCB Mount, 12V dc Coil, 1 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14127353 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number V23101D6B201.
Yes. You can also search V23101D6B201 on website for other similar products.
Yes. We ship V23101D6B201 Internationally to many countries around the world.
