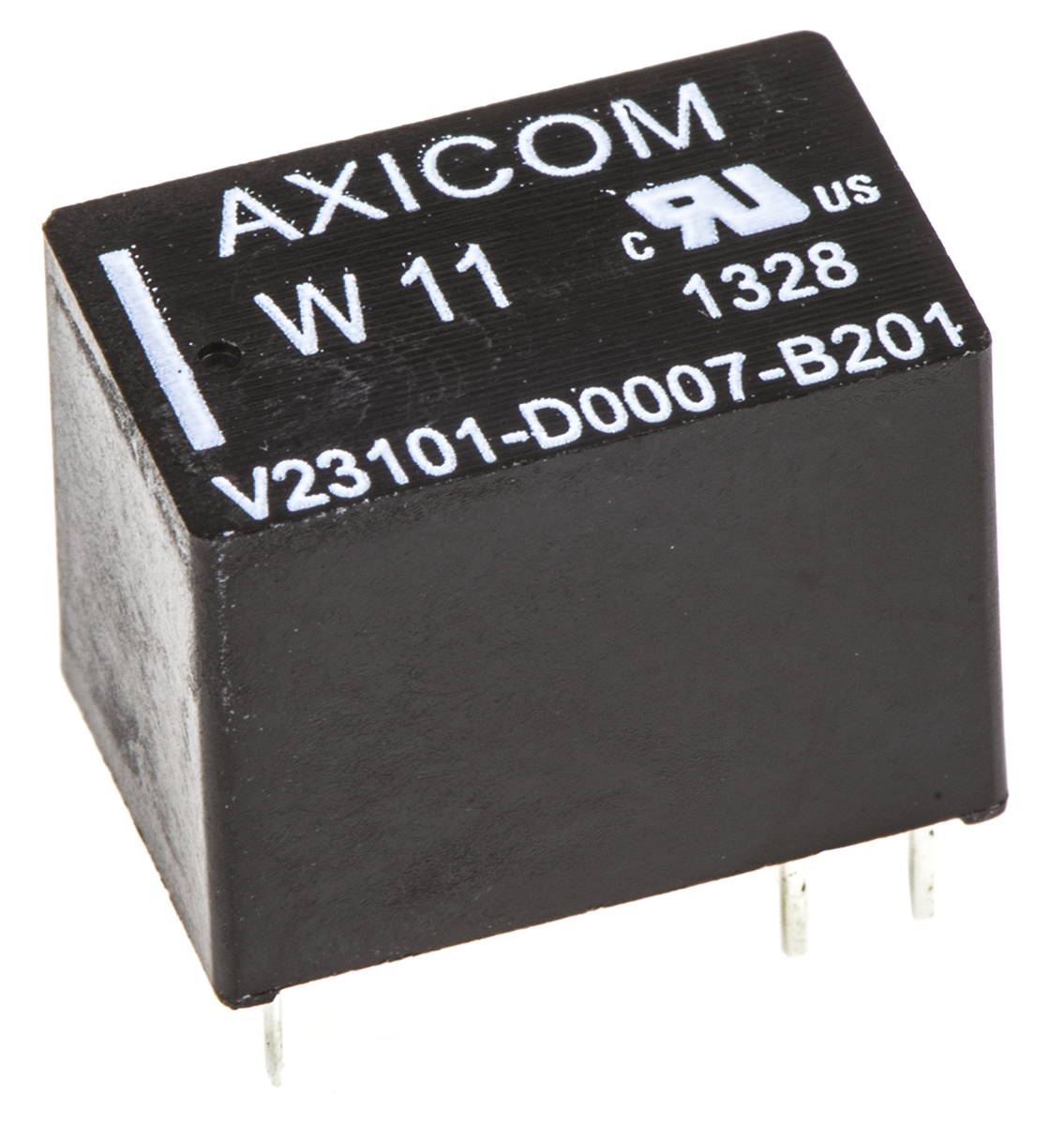

TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A

V23101D7B201 TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 1 A
V23101D7B201
V23101D7B201
TE Connectivity

Product Information

Dimensions:
15.4 x 11.5 x 10mm
Coil Voltage:
24V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
1280Ω
Life:
10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
Coil Power:
450mW
Maximum Switching Voltage DC:
120V dc
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
1kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
1.25A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
SPST
Depth:
10mm
Features:
Multi Purpose Relay, Immersion Cleanable
Mounting Type:
PCB Mount
Series:
W11
Length:
15.4mm
Height:
11.5mm
Maximum Switching Current DC:
1.25 A
Maximum Switching Voltage AC:
125V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
1
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 24V dc Coil 1 A manufactured by TE Connectivity. The manufacturer part number is V23101D7B201. The given dimensions of the product include 15.4 x 11.5 x 10mm. The coil voltage of the product is 24v dc. The terminal is a through hole type. It holds up to 1280ω coil resistance. Robust coil power of 450mw. It has a maximum operating temperature of +85°c. The product comes in 10mm depth. The splendid features of the product include multi purpose relay, immersion cleanable. The product is available in pcb mount configuration. The product w11, is a highly preferred choice for users. Its accurate length is 15.4mm. In addition, the height is 11.5mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. The product is made from sturdy gold plated materials.
