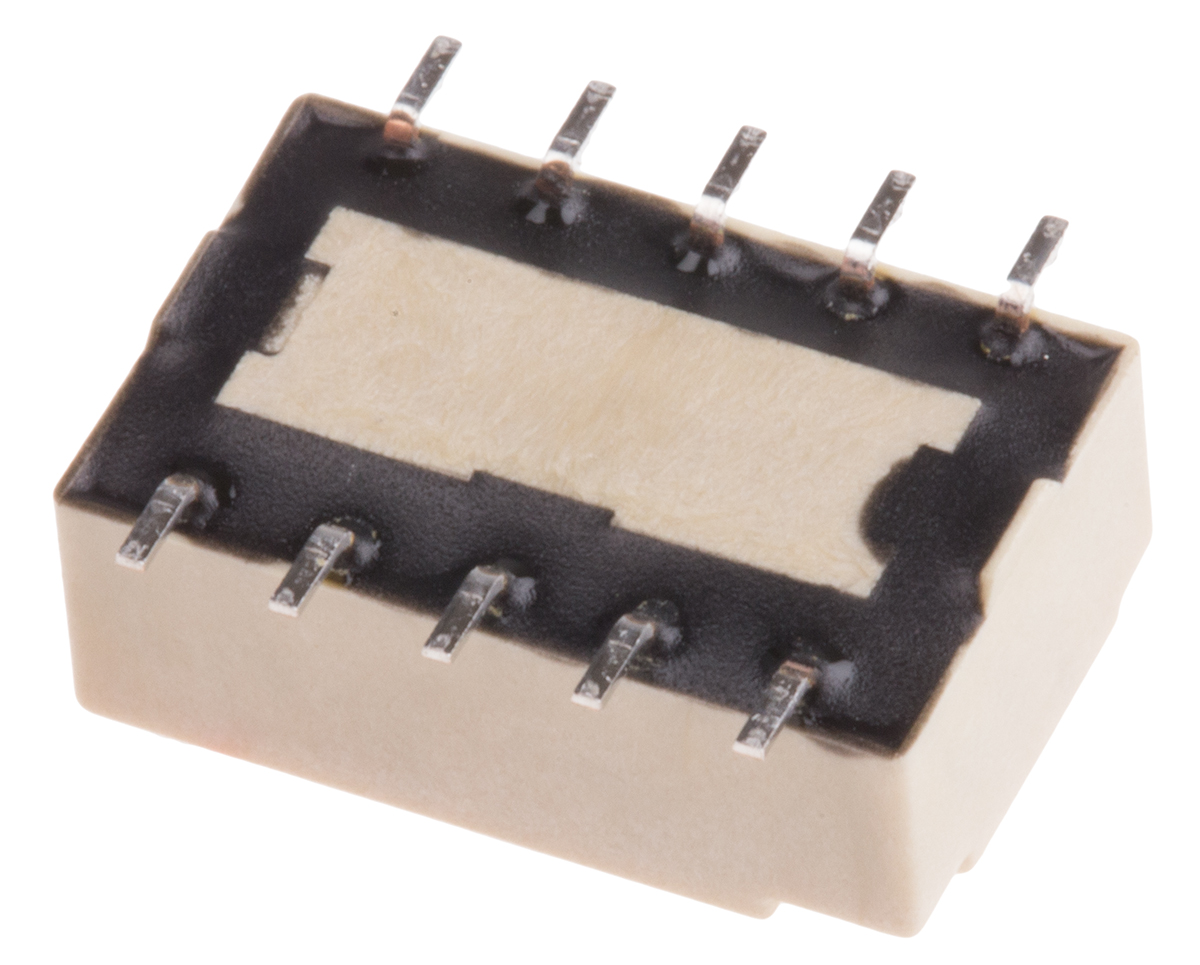

Panasonic, 3V dc Coil Non-Latching Relay DPDT, 2A Switching Current PCB Mount, TQ2SA3ULCSA

TQ2SA-3V Panasonic, 3V dc Coil Non-Latching Relay DPDT, 2A Switching Current PCB Mount, TQ2SA3ULCSA
TQ2SA-3V
TQ2SA-3V Panasonic, 3V dc Coil Non-Latching Relay DPDT, 2A Switching Current PCB Mount, TQ2SA3ULCSA
Panasonic

Product Information

Dimensions:
14 x 9 x 5.6mm
Coil Voltage:
3V dc
Terminal Type:
PCB Pin
Coil Resistance:
64.3Ω
Life:
100000000 (Mechanical) cycles, 200000 (Electrical) cycles
Coil Power:
140mW
Maximum Switching Voltage DC:
110V dc
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+70°C
Switching Current:
1A
Operating Temperature Range:
-40 → +70°C
Latching:
No
Contact Configuration:
SPDT
Depth:
9mm
Features:
High Density Mounting Possible, Low Thermal Electromotive Force, Self Clinching Terminal Also Available
Mounting Type:
Surface Mount
Series:
TQ
Length:
14mm
Height:
5.6mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
1
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is 3V dc Coil Non-Latching Relay DPDT 2A Switching Current PCB Mount TQ2SA3ULCSA manufactured by Panasonic. The manufacturer part number is TQ2SA-3V. The given dimensions of the product include 14 x 9 x 5.6mm. The coil voltage of the product is 3v dc. The terminal is a pcb pin type. It holds up to 64.3ω coil resistance. Robust coil power of 140mw. It has a maximum operating temperature of +70°c. The product comes in 9mm depth. The splendid features of the product include high density mounting possible, low thermal electromotive force, self clinching terminal also available. The product is available in surface mount configuration. The product tq, is a highly preferred choice for users. Its accurate length is 14mm. In addition, the height is 5.6mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 1 poles. The product is made from sturdy gold plated materials.

pdf icon
TQ SMD RELAYS Data Sheet(Technical Reference)
