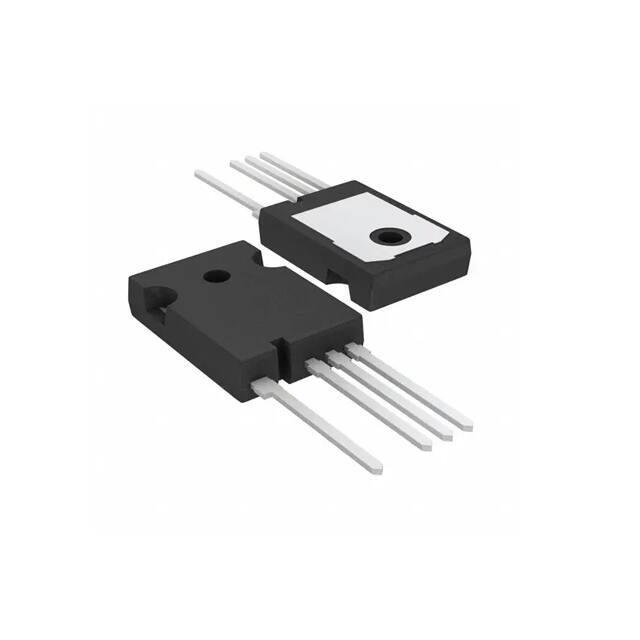

This is manufactured by ANBON SEMICONDUCTOR (INT'L) LIMITED. The manufacturer part number is AS1M040120T. The typical Vgs (th) (max) of the product is 4v @ 10ma. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. It has a maximum Rds On and voltage of 55mohm @ 40a, 20v. The maximum gate charge and given voltages include 142 nc @ 20 v. The product is rohs3 compliant. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 20v. It is shipped in tube. The product has a 1200 v drain to source voltage. The maximum Vgs rate is +25v, -10v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 330w (tc). The product's input capacitance at maximum includes 2946 pf @ 1000 v. The product is available in through hole configuration. to-247-4 is the supplier device package value. The continuous current drain at 25°C is 60a (tc). This product use sicfet (silicon carbide) technology.
For more information please check the datasheets.
