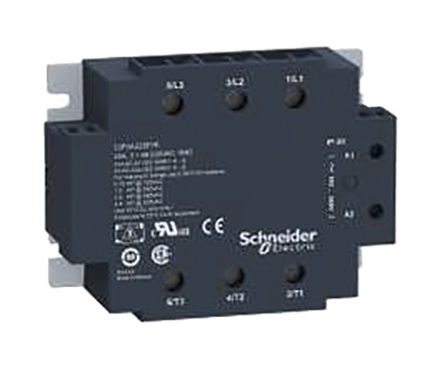

Schneider Electric 25 A 3P-NO Solid State Relay, AC Switching, Panel Mount SCR, 530 V ac Maximum Load

SSP3A225BD Schneider Electric 25 A 3P-NO Solid State Relay, AC Switching, Panel Mount SCR, 530 V ac Maximum Load
Schneider Electric

Product Information

Dimensions:
101.3 x 97.8 x 35.5mm
Relay Type:
Three Channel Three Phase
Capacitance:
8pF
Maximum Load Voltage:
530 V ac
Output Device:
SCR
Load Voltage Range:
48 → 530V ac
Standards Met:
CE, CSA, UL
Minimum Control Voltage:
4 V dc
Off State Leakage Current:
3 mA
Switching Type:
AC
Terminal Type:
Screw
Control Voltage Range:
4 → 32 V dc
Operating Temperature Range:
-40 → +80°C
Minimum Load Current:
0.1 A
Contact Configuration:
3P-NO
Length:
101.3mm
Maximum Turn On Time:
8.33ms
Special Features:
For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually
Maximum Load Current:
25 A
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Panel Mount
Depth:
97.8mm
Height:
35.5mm
Maximum Control Voltage:
32 V dc
Number of Poles:
3
Minimum Load Voltage:
48 V ac
RoHs Compliant
Checking for live stock

This is 25 A 3P-NO Solid State Relay AC Switching Panel Mount SCR 530 V ac Maximum Load manufactured by Schneider Electric. The manufacturer part number is SSP3A225BD. The given dimensions of the product include 101.3 x 97.8 x 35.5mm. This is basically a three channel three phase. It provides a 8pf of capacitance value. The terminal is a screw type. Its accurate length is 101.3mm. The product is available in panel mount configuration. The product comes in 97.8mm depth. In addition, the height is 35.5mm. It has equipped with 3 poles.
