Depth:
57.3mm
Height:
26.4mm
Length:
44.5mm
Series:
1
Dimensions:
44.5 x 57.3 x 26.4mm

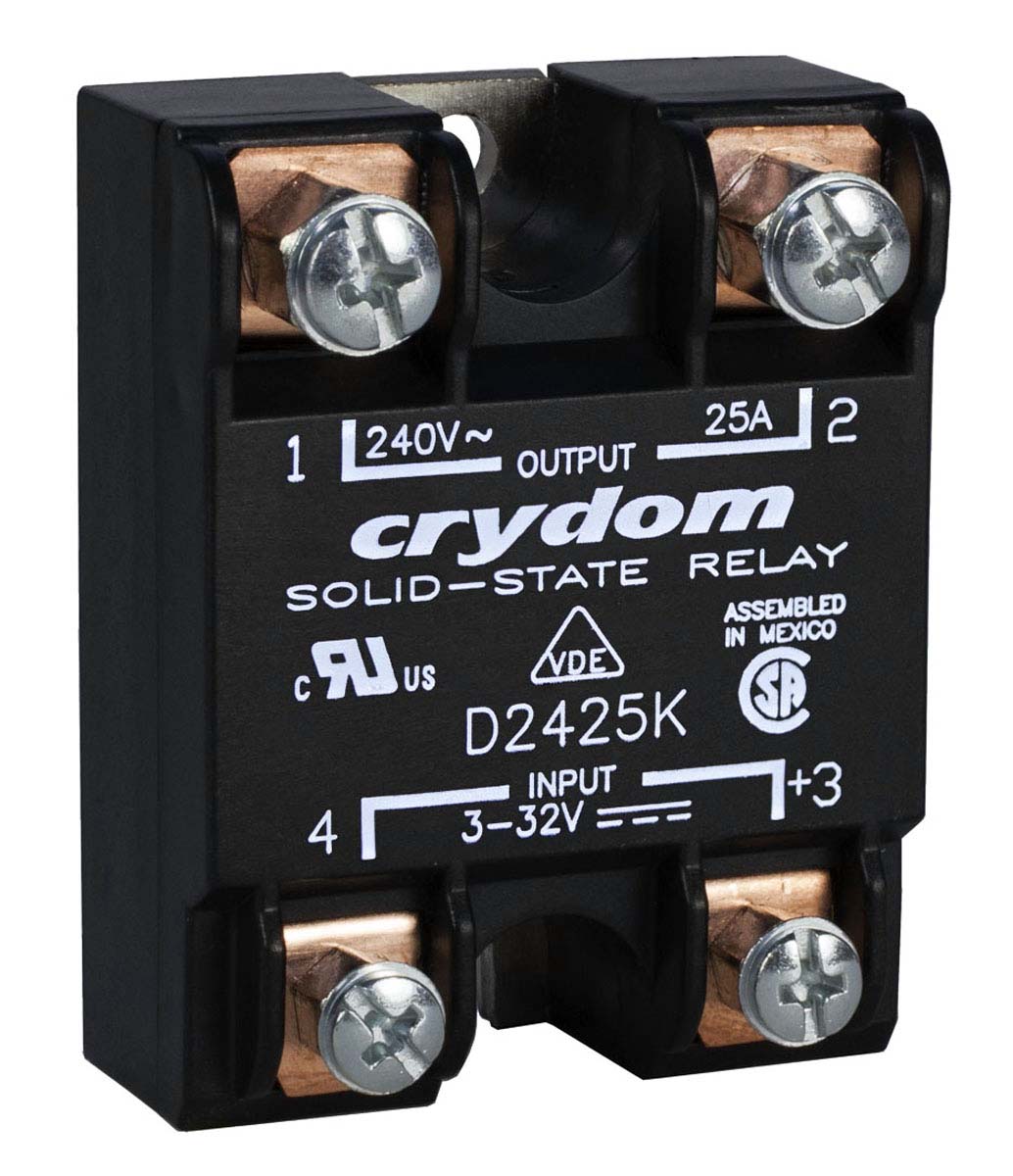

Relay Type:
Solid State Relay
Capacitance:
8pF
Mounting Type:
Panel Mount
Output Device:
SCR
Standards Met:
CE, CSA LR 81689, cULus Recognised E116949, EN 60950-1, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 62314, UL, VDE Approved 10143 UG
Terminal Type:
Screw
Switching Type:
Zero Cross
Number of Poles:
1
Special Features:
AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers
Load Voltage Range:
24 → 280V ac
Maximum Load Current:
50 A rms
Maximum Load Voltage:
280 V dc
Maximum Turn On Time:
1/2 cycle + 1 ms
Minimum Load Current:
150mA rms
Minimum Load Voltage:
24 V dc
Control Voltage Range:
4 → 32 V dc
Maximum Control Voltage:
32 V dc
Minimum Control Voltage:
4 V dc
Off State Leakage Current:
1mArms
Operating Temperature Range:
-40 → +80°C
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-40°C
