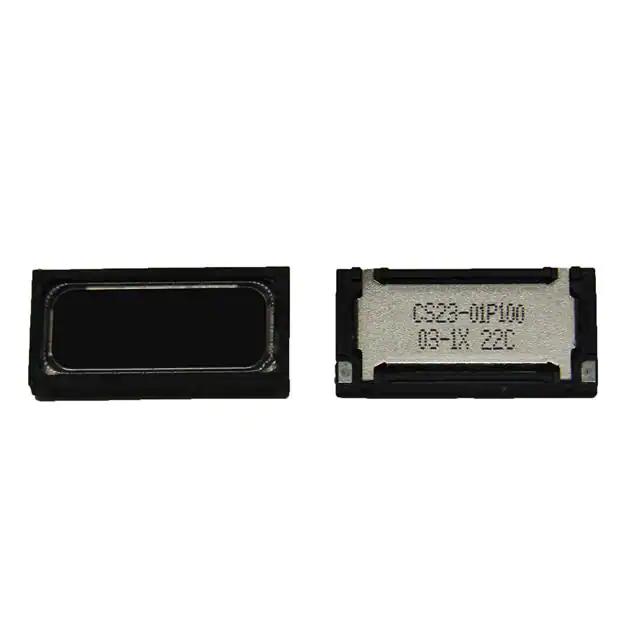

This is manufactured by Challenge Electronics. The manufacturer part number is CS23-01P100-03-1X. The frequency range includes 1 khz ~ 20 khz. Port location: top. It is assigned with possible HTSUS value of 8518.29.8000. The product is rohs3 compliant. It features a power rating of 1.5 w. The product has -20°c ~ 60°c operating temperature range. It comes in general purpose configuration. It has the maximum seated height of 0.146" (3.70mm) 1khz is the self-resonant frequency of the product. In addition, it is reach affected. It has an impedance value of 8 ohms. It is shipped in tray. The product's diameters include 0.906" l x 0.433" w (23.00mm x 11.00mm). The product features solder pads termination style. Its typical moisture sensitivity level is not applicable. It is IP rated with ip67 - dust tight, waterproof. The maximum power of the product is 1.7 w. It is a rectangular product with unique specifications. This product use magnetic technology. The product is designated with the ear99 code number
For more information please check the datasheets.
