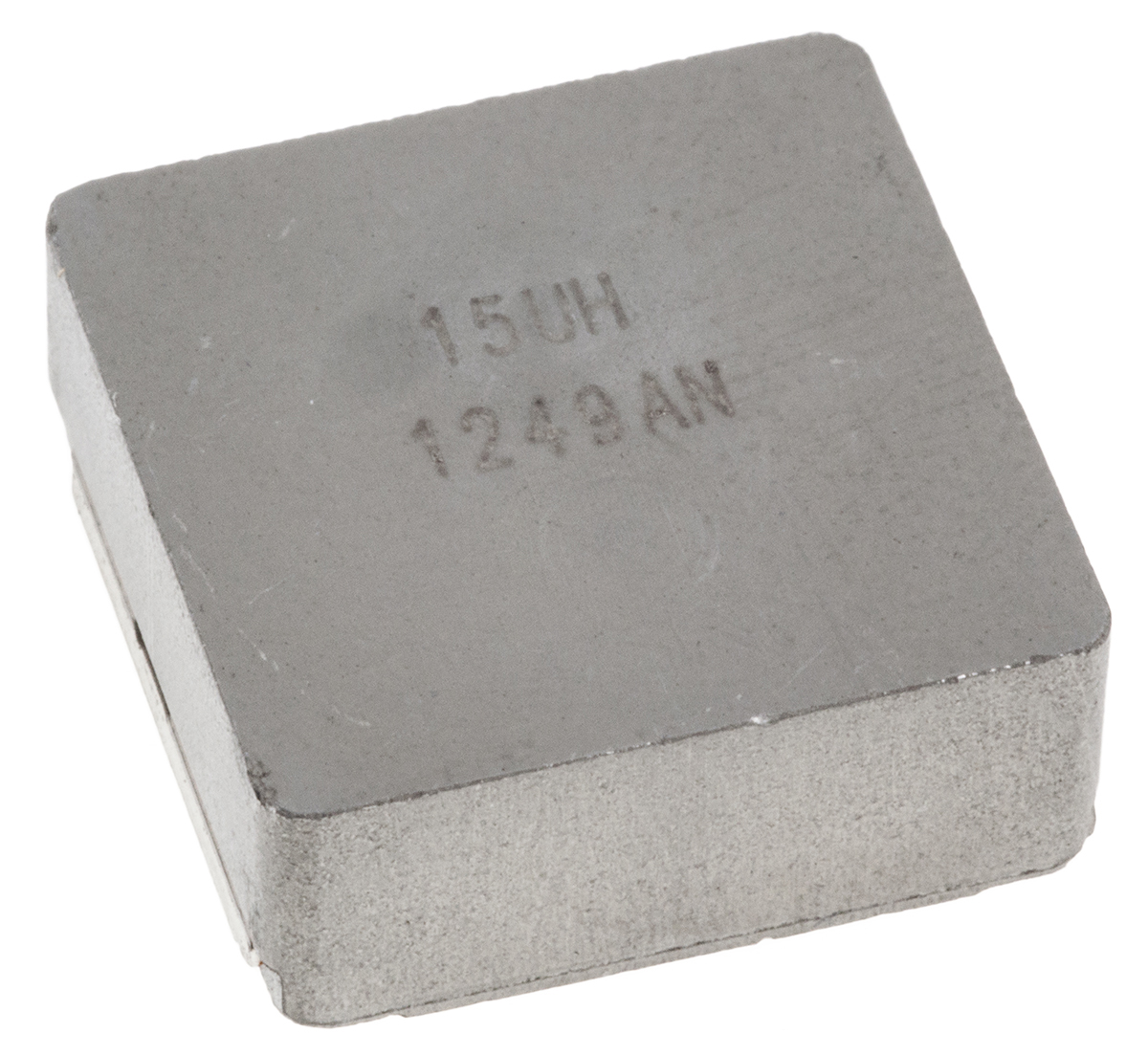

Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor With A Metal Composite Core, 15 μH ±20%

IHLP6767GZER150M01 Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 15 μH ±20%

(0)

Product Information

Maximum DC Resistance:

19.9mΩ

Inductor Construction:

Shielded

Dimensions:

17.15 x 17.15 x 7mm

Shielded:

Yes

Series:

IHLP

Length:

17.15mm

Height:

7mm

Maximum DC Current:

12.5A

Depth:

17.15mm

Core Material:

Metal Composite

Inductance:

15 μH

Maximum Self Resonant Frequency:

2MHz

Checking for live stock

This is IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core 15 μH ±20% manufactured by Vishay. The manufacturer part number is IHLP6767GZER150M01. The given dimensions of the product include 17.15 x 17.15 x 7mm. The product ihlp, is a highly preferred choice for users. Its accurate length is 17.15mm. In addition, the height is 7mm. The product comes in 17.15mm depth. The product has a 15 μh inductance value. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c.

Application Note(Technical Reference)

Power Inductors Capabilities(Technical Reference)

Power Inductors 101(Technical Reference)

Datasheet(Technical Reference)

Did You Know?(Technical Reference)

IHLP Selection Example(Technical Reference)

Power Inductors Infograph(Technical Reference)
