Impulse Discharge Current:
50kA
Dimensions:
47 x 17.7 x 67.3 mm
Operating Temperature Range:
-40 → +80 °C
Series:

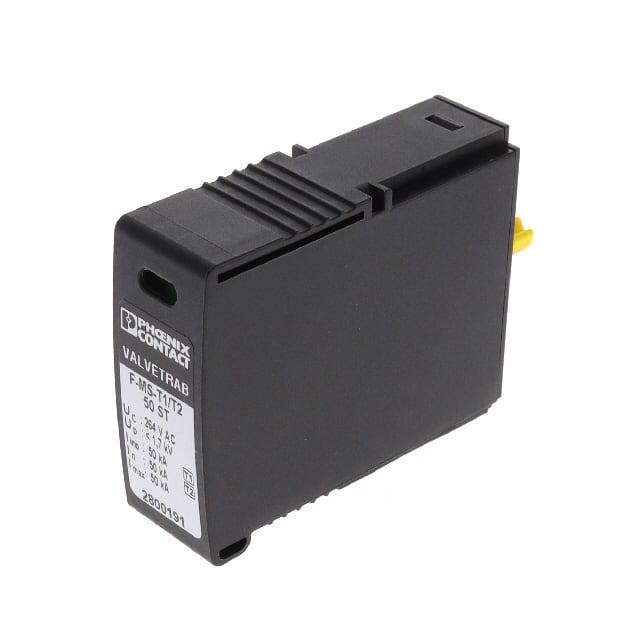

F-MS-T1/T2 50 ST
Length:
47mm
Mounting Style:
DIN Rail
Width:
17.7mm
Depth:
67.3mm
Minimum Operating Temperature:
-40°C
Voltage Protection Rating:
240 V ac
Maximum Surge Current:
50kA
Maximum Operating Temperature:
+80°C
HTSUS:
8536.30.8000
RoHS Status:
RoHS Compliant
Voltage - Continuous Operating (Max) (MCOV):
264VAC
Operating Temperature:
-40°C ~ 80°C
Approval Agency:
CB, CCA, cUL, cULus, EAC, GL, KEMA-KEUR, OVE, UL
Type:
Type 1, Type 2
Form:
Module Only
Voltage - Protection Level (VP) (2416):
1.7 kV
Current - Discharge (Nom) (8/20µS):
20 kA
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
4 Weeks
Features:
-
Mounting Type:
Base Mount
Series:
-
Current - Discharge (Max) (8/20µS):
50 kA
Number of Poles:
1
ECCN:
EAR99
