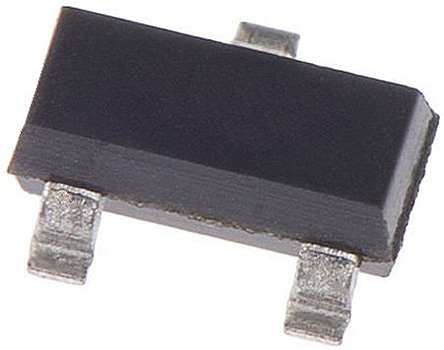

Vishay BAV99-E3-08 Dual Switching Diode, Series, 150mA 100V, 3-Pin SOT-23

Enrgtech Part No: ET13847219
|
Manufacturer Part No:
BAV99-E3-08
|
Manufacturer: Vishay

BAV99-E3-08 Vishay Dual Switching Diode, Series, 150mA 100V, 3-Pin SOT-23

(0)

Product Information

Dimensions:

3.1 x 1.43 x 1.05mm

Mounting Type:

Surface Mount

Diode Technology:

Silicon Junction

Maximum Forward Current:

150mA

Maximum Forward Voltage Drop:

1.25V

Height:

1.05mm

Width:

1.43mm

Length:

3.1mm

Package Type:

SOT-23

Number of Elements per Chip:

Minimum Operating Temperature:

-55 °C

Maximum Reverse Voltage:

100V

Checking for live stock

This is Dual Switching Diode Series 150mA 100V 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is BAV99-E3-08. The given dimensions of the product include 3.1 x 1.43 x 1.05mm. The product is available in surface mount configuration. In addition, the height is 1.05mm. Furthermore, the product is 1.43mm wide. Its accurate length is 3.1mm. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +150 °c. The diode features a series configuration.
