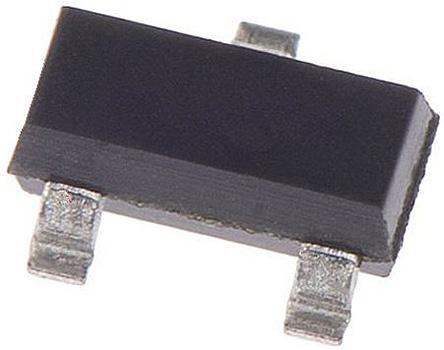

Vishay BAW56-E3-08 Dual Switching Diode, Common Anode, 250mA 70V, 3-Pin SOT-23

Enrgtech Part No: ET16721819
|
Manufacturer Part No:
BAW56-E3-08
|
Manufacturer: Vishay

BAW56-E3-08 Vishay Dual Switching Diode, Common Anode, 250mA 70V, 3-Pin SOT-23

(0)

Product Information

Dimensions:

3.1 x 1.43 x 1.05mm

Mounting Type:

Surface Mount

Diode Technology:

Silicon Junction

Maximum Forward Current:

250mA

Maximum Forward Voltage Drop:

1.25V

Height:

1.05mm

Width:

1.43mm

Length:

3.1mm

Package Type:

SOT-23

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Maximum Reverse Voltage:

70V

Checking for live stock

This is Dual Switching Diode Common Anode 250mA 70V 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is BAW56-E3-08. The given dimensions of the product include 3.1 x 1.43 x 1.05mm. The product is available in surface mount configuration. In addition, the height is 1.05mm. Furthermore, the product is 1.43mm wide. Its accurate length is 3.1mm. Whereas, the minimum operating temperature of the product is -65 °c. It has a maximum operating temperature of +150 °c. The diode features a common anode configuration.

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)

Application Note- Trim and Form Process Reccomendation(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

Application Note- Rectifiers for Power Factor Correction(Technical Reference)

Diode Switching 70V 0.25A SOT23(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)
