Dimensions:
2.13 x 6.86 x 5.84mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Operating Temperature:
+175 °C
Maximum Forward Voltage Drop:
1.28V
Height:
2.13mm
Width:
5.84mm
Length:
6.86mm

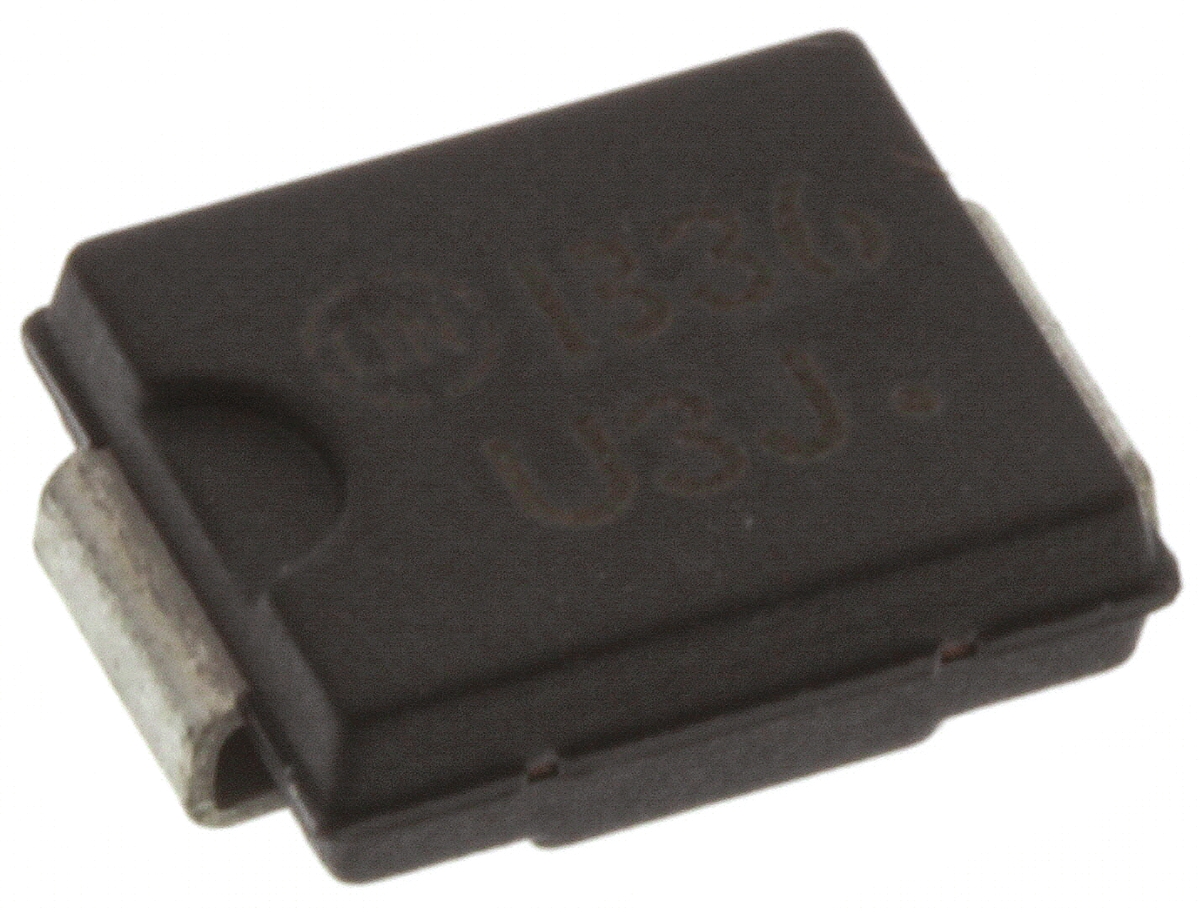

Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Diode Configuration:
Single
Pin Count:
2
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
DO-214AB, SMC
Reverse Recovery Time (trr):
75 ns
Operating Temperature - Junction:
-65°C ~ 175°C
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
3A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.25 V @ 3 A
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
600 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
43 Weeks
Current - Reverse Leakage @ Vr:
10 µA @ 600 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SMC
Technology:
Standard
Base Product Number:
MURS360
ECCN:
EAR99
