Number of Outputs:
1
Maximum Temperature:
+50°C
Mounting Type:
Chassis Mount
Weight:
118g
Minimum Temperature:
0°C
Length:
101.6mm
Width:
50.8mm
Depth:
25.4mm
Input Voltage:
127 → 300 V dc, 90 → 264 V ac
Package Type:
Open Frame
Medical Approved:
Yes
Output Voltage:
15V dc
Power Rating:
45W
Output Current:
4A
Manufacturer Standard Lead Time:
24 Weeks
Number of Outputs:
1
Detailed Description:

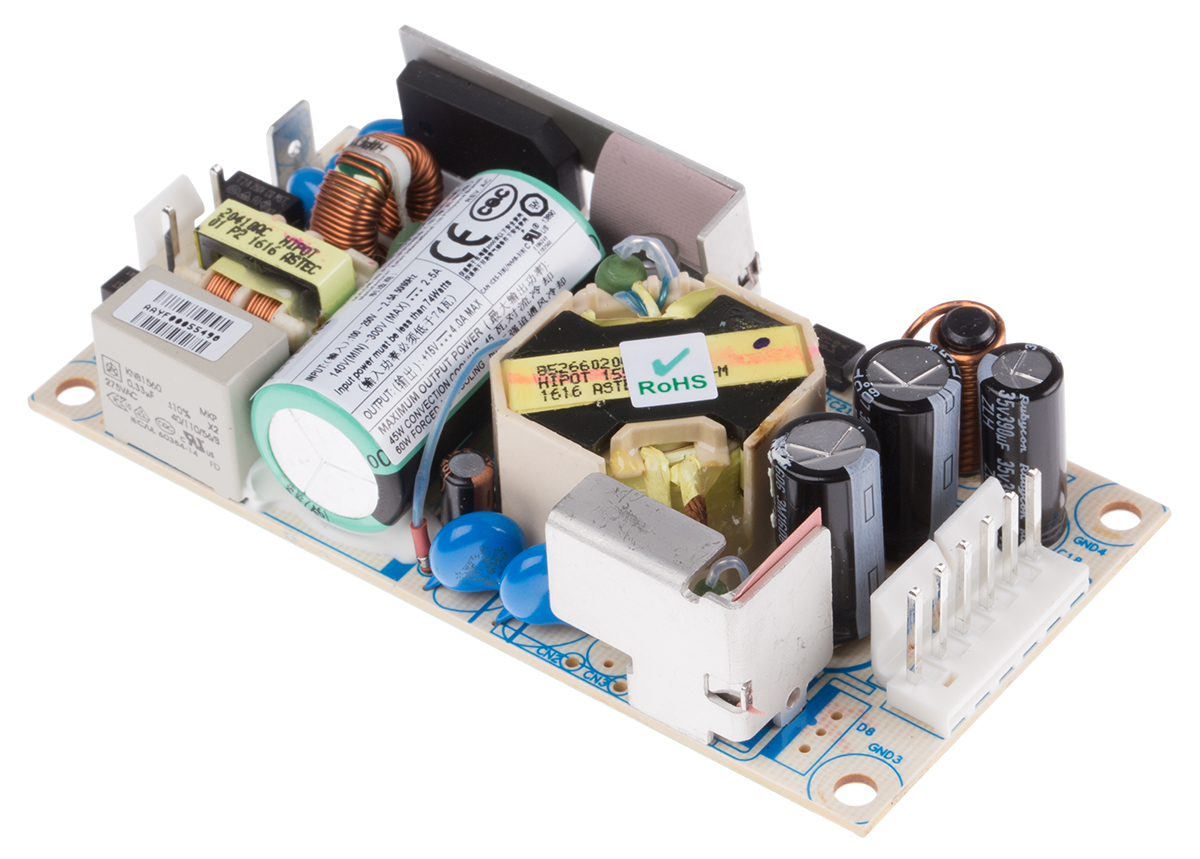

Open Frame AC DC Converter 1 Output 15V 3A 90 ~ 264 VAC Input
Features:
Adjustable Output, DC Input Capable, Remote Sense, Universal Input
Mounting Type:
Chassis Mount
Applications:
ITE (Commercial), Medical
Series:
NPS40-M (60W)
Voltage - Output 1:
15V
Minimum Load Required:
No
Size / Dimension:
4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 21.8mm)
Efficiency:
87%
Power (Watts):
45W (60W Forced Air)
Current - Output (Max):
3A
Approvals:
CB, CCC, CE, CSA, UL, TUV
Voltage - Input:
90 ~ 264 VAC
Operating Temperature:
0°C ~ 80°C (With Derating)
Type:
Open Frame
Manufacturer:
Artesyn Embedded Technologies
