3216 1/16 DIN Temperature / Process Controllers Safety Messaging via 4 digit starburst display for simple visual indication of the process status Programmable with ITools Configuration Software when used with configuration clip (stock no. 611-8365 ) Up to 3 Outputs: Logic I/O, Relay and Analogue can be configured to provide any combination of heat, cool or alarm Universal Inputs -B, J, K, L, N, R, S, T, C, PT100, 0-80mV, 0-20mA, 4-20mA Dimensions: H48 x W48 x D90mm Eurotherm Series 3200 Quick Start Wizard configuration, PID, Self-Tuning and Alarms. Dwell timer,delayed switch on timer and self start timer functions. IP65, NEMA 4X rated. Scrolling text delivers plain language messages to advise operators and engineers what is happening to the process. Applications include plastic extruders, small ovens, chillers, sterilizers, trace heating, packaging machines.

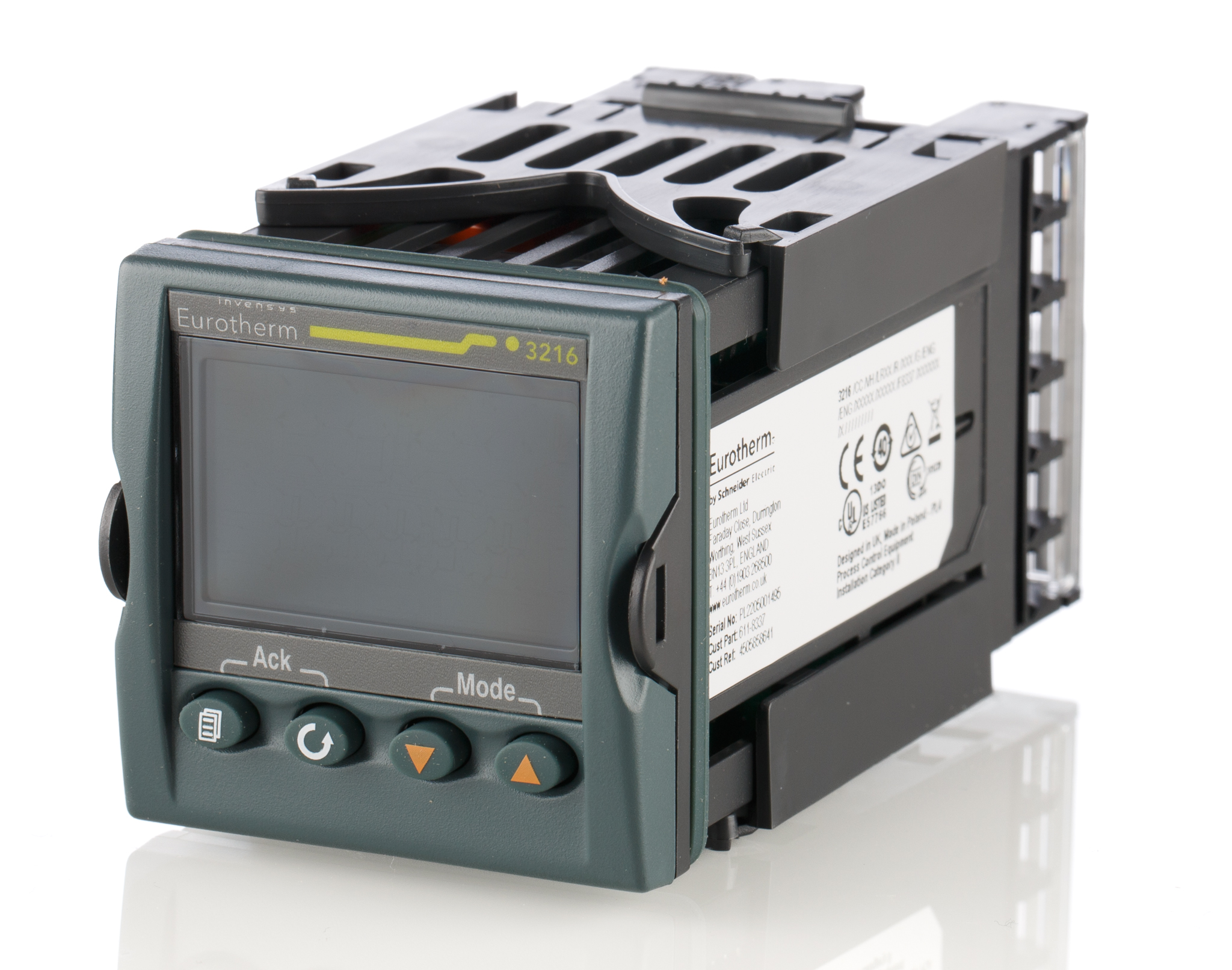

The Eurotherm 3216 PID Temperature Controller is a compact and efficient solution for temperature control applications. With its small form factor of 48mm x 48mm (1/16 DIN), it can be easily integrated into various control systems. The device features 3 outputs, which include 1 changeover relay, 1 logic I/O, and 1 relay, providing ample versatility for different control scenarios.
The 3216 is equipped with an intuitive user interface, making it easy to navigate and program, even for those without prior experience. It offers a range of input options, including thermocouples, RTDs, voltage, and current signals, which can be used to measure and control the temperature of a process. Additionally, the controller is capable of linearization of thermocouple and RTD inputs, ensuring accurate and consistent temperature readings.
The device supports automatic tuning, which eliminates the need for manual calculations and simplifies the setup process. The controller also features a built-in self-tuning algorithm, which continuously adjusts the control parameters for optimal performance. The 3216 is equipped with a dual-line display that provides clear and concise information on the process, setpoint, and control output, allowing for easy monitoring and troubleshooting.
The 3216 is suitable for a wide range of applications, including heating and cooling processes, ovens, and furnaces. The device is capable of handling power inputs up to 250V AC, making it ideal for demanding industrial environments. Additionally, the controller is CE and UL certified, ensuring that it meets the necessary safety and performance standards.
In summary, the Eurotherm 3216 PID Temperature Controller is a highly versatile and efficient solution for temperature control applications. With its small form factor, intuitive user interface, and robust performance, it is an ideal choice for a wide range of industrial applications.
For more information please check the datasheets.
Works as it should. It arrived packaged very well. I haven't had any problems with it. Works like a champ!
This unit is compact and has an easy to read display. I find this controller to be excellent value for money and highly recommend it.
