Size:
50 x 97mm
Range:

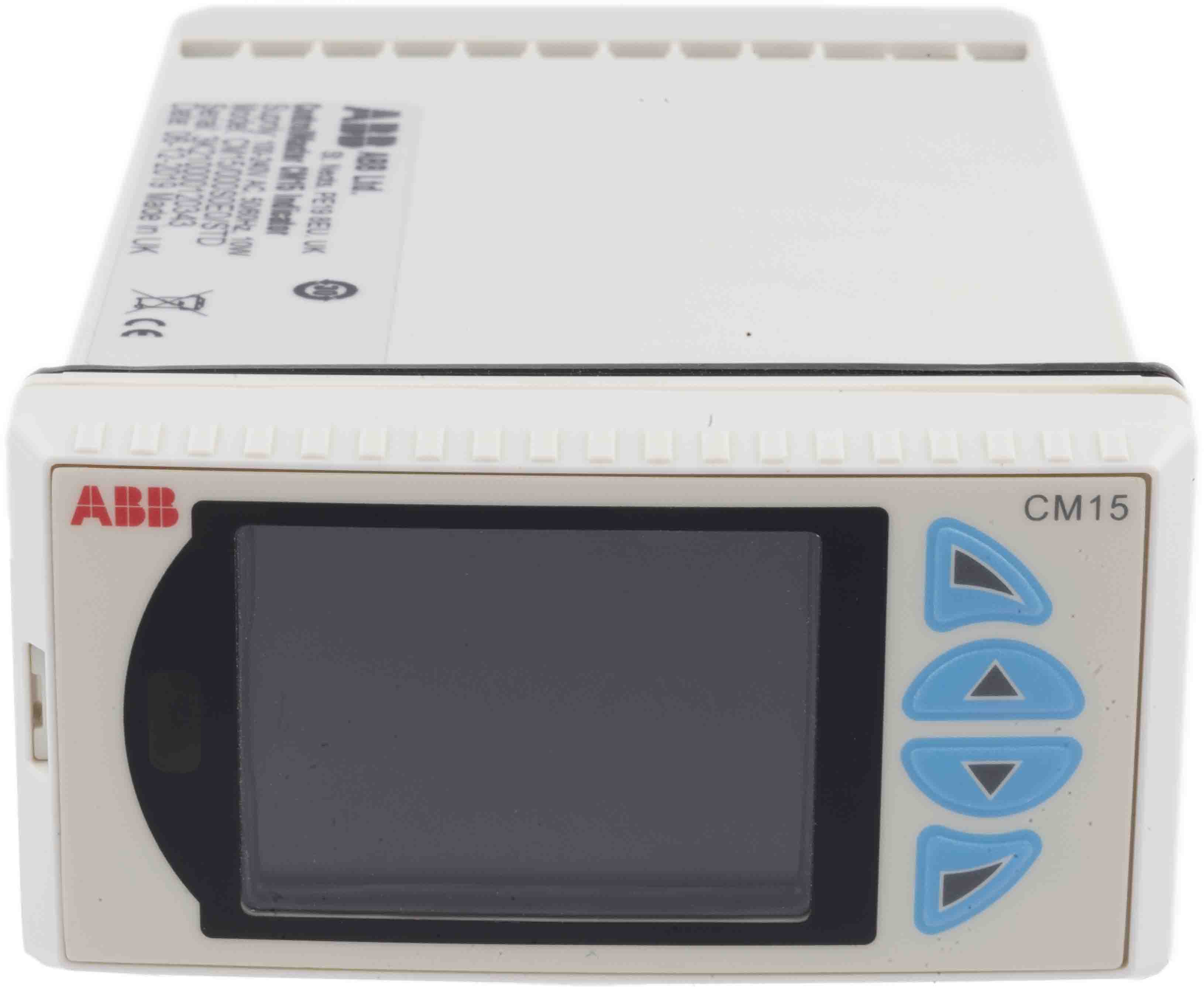

ControlMaster CM15
Series:
CM15
IP Rating:
IP66
Input Type:
Thermocouple
Output Type:
Analogue, Relay
Panel Depth:
120mm
Control Type:
ON/OFF
Display Type:
LCD, Multi Line, TFT
Mounting Type:
Panel Mount
Display Colour:
Green, Red, Yellow
Supply Voltage:
100 → 240 V ac
Number of Inputs:
2
Number of Outputs:
2
Temperature Range:
-100 → +900 (Type E Thermocouple) °C, -100 → +900 (Type J Thermocouple) °C, -100 → +900 (Type L Thermocouple) °C, -100 → 1300 (Type K Thermocouple) °C, -18 → +1700 (Type R Thermocouple) °C, -18 → +1700 (Type S Thermocouple) °C, -18 → +1800 (Type B Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +600 (Pt100) °C, -250 → +300 (Type T Thermocouple) °C
Additional Functionality:
ON/OFF
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
0°C
Control Type:
ON/OFF
Display Type:
LCD, Multi Line, TFT
Display Colour:
Green, Red, Yellow
Minimum Operating Temperature:
0°C
IP Rating:
IP66
Series:
CM15
Panel Depth:
120mm
Output Type:
Analogue, Relay
Range:
ControlMaster CM15
Supply Voltage:
100 → 240 V ac
Additional Functionality:
ON/OFF
Temperature Range:
-100 → +900 (Type E Thermocouple) °C, -100 → +900 (Type J Thermocouple) °C, -100 → +900 (Type L Thermocouple) °C, -100 → 1300 (Type K Thermocouple) °C, -18 → +1700 (Type R Thermocouple) °C, -18 → +1700 (Type S Thermocouple) °C, -18 → +1800 (Type B Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +600 (Pt100) °C, -250 → +300 (Type T Thermocouple) °C
Maximum Operating Temperature:
+55°C
Number of Outputs:
2
Size:
50 x 97mm
