Current Maximum:
16 A
Time Delay:
120 (Reset) ms
Time Increment:
Hours, Minutes, Seconds
Mounting Type:
DIN Rail
Time Range:
0.1 s → 100 h
Power Supply:
External
Length:
22.5mm
Mode of Operation:
A, AC, AT, B, BW, C, D, Di, H, Ht
Terminal Type:
Screw
Width:
90mm
Depth:
77mm
Supply Voltage:
12 → 240 V ac/dc
Minimum Operating Temperature:
-20°C
Number of Timer Functions:
Multi Function, Single
Switch Configuration:
2 C/O
Number of Contacts:
2
Maximum Operating Temperature:
+60°C
Contact Material:
Silver Nickel
HTSUS:
8536.49.0075
RoHS Status:
RoHS Compliant
Relay Type:
Mechanical Relay
Termination Style:
Screw Terminal
Timing Initiate Method:
Input Voltage, Trigger Signal
Function:
Programmable (Multi-Function)
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT (2 Form C)
Contact Rating @ Voltage:
8A @ 250VAC
Delay Time:
0.1 Sec ~ 100 Hrs
Timing Adjustment Method:
Screwdriver Slot
Mounting Type:
DIN Rail

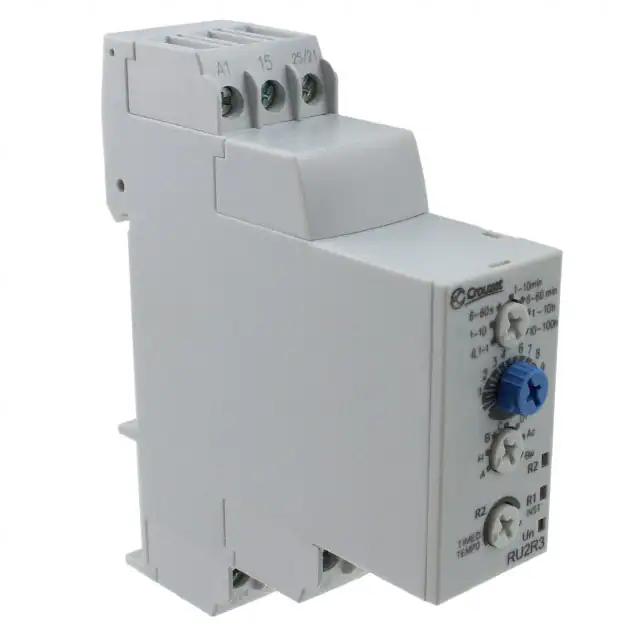

Series:
RU2R3
Voltage - Supply:
12 ~ 240VAC/DC
ECCN:
EAR99
