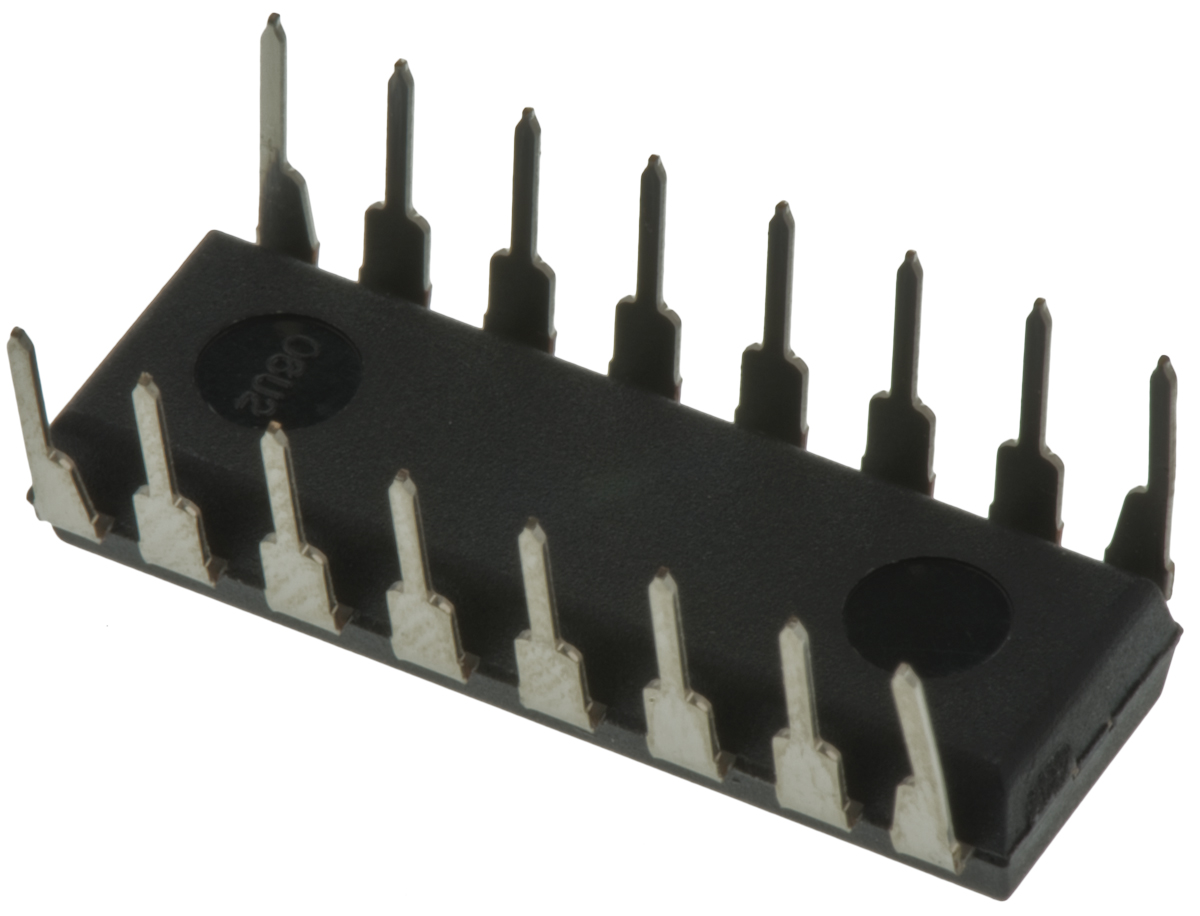

Programmable Timer Single 16-Pin PDIP

CD4536BEE4 Programmable Timer Single 16-Pin PDIP
CD4536BEE4
Texas Instruments

Product Information

Maximum Low Level Output Current:
4.2mA
Timer Type:
Programmable
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Maximum Propagation Delay Time @ Maximum CL:
8000 ns@ 5 V
Maximum Quiescent Current:
0.1mA
Minimum Operating Supply Voltage:
3 V
Height:
4.57mm
Number of Internal Timers:
1
Width:
6.35mm
Length:
19.3mm
Package Type:
PDIP
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
18 V
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Maximum High Level Output Current:
-4.2mA
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Package / Case:
16-DIP (0.300", 7.62mm)
Type:
Programmable Timer
Current - Supply:
100 µA
Count:
2 ~ 2²4
Package:
Tube
standardLeadTime:
6 Weeks
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
16-PDIP
Frequency:
5MHz
Voltage - Supply:
3V ~ 18V
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Programmable Timer Single 16-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is CD4536BEE4. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. In addition, the height is 4.57mm. Furthermore, the product is 6.35mm wide. Its accurate length is 19.3mm. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in programmable timer configuration. The current - supply of a bespoke product is 100 µa. The typical count of the product is 2 ~ 2²4. It is shipped in tube. It has a long 6 weeks standard lead time. 16-pdip is the supplier device package value. Supplied with 5mhz of frequency. It has optimum voltage supply of 3v ~ 18v. The product is designated with the ear99 code number
