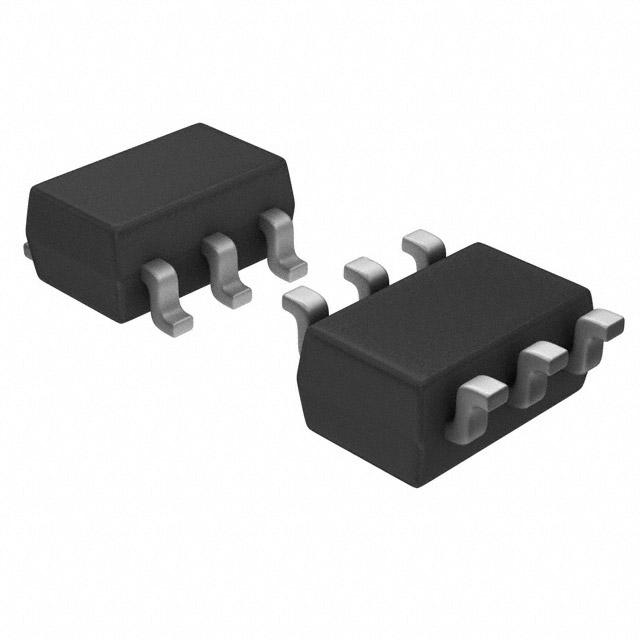

onsemi CPH6636R-TL-W

CPH6636R-TL-W onsemi
onsemi

Product Information

FET Feature:
Logic Level Gate, 2.5V Drive
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
-
Operating Temperature:
150°C (TJ)
Package / Case:
SOT-23-6 Thin, TSOT-23-6
Rds On (Max) @ Id, Vgs:
20mOhm @ 3A, 4.5V
Gate Charge (Qg) (Max) @ Vgs:
3nC @ 4.5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
6A
Configuration:
2 N-Channel (Dual) Common Drain
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
24V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-CPH
Power - Max:
900mW
Technology:
MOSFET (Metal Oxide)
Base Product Number:
CPH663
ECCN:
EAR99
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is CPH6636R-TL-W. The FET features of the product include logic level gate, 2.5v drive. It is assigned with possible HTSUS value of 8541.21.0095. The product has 150°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. It has a maximum Rds On and voltage of 20mohm @ 3a, 4.5v. The maximum gate charge and given voltages include 3nc @ 4.5v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 6a. The product is available in 2 n-channel (dual) common drain configuration. It is shipped in tape & reel (tr). The product has a 24v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. 6-cph is the supplier device package value. The maximum power of the product is 900mw. This product use mosfet (metal oxide) technology. Moreover, it corresponds to cph663, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Mult Dev EOL 16/Jul/2019(PCN Obsolescence/ EOL)
pdf icon
CPH6636R(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
